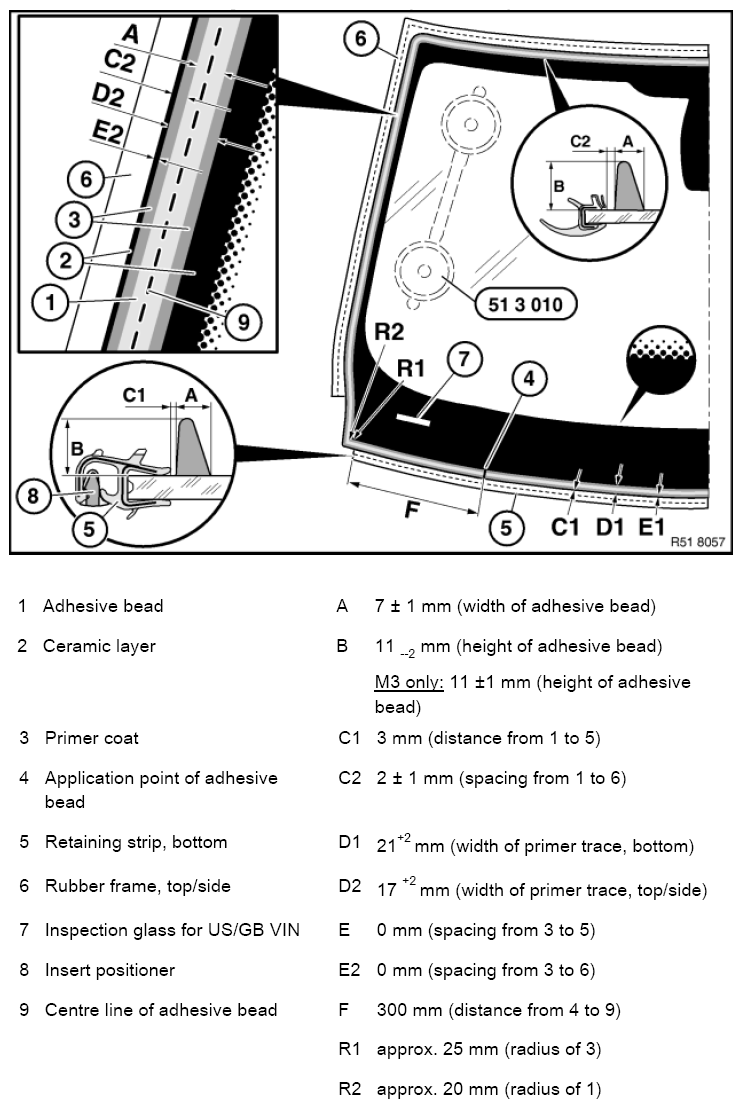

Overview for bonding of windscreen (E92/E93)

Attach special tool 51 3 010 twice to tool trolley. Moisten suction faces and tension windscreen from outside.

If reusing removed windscreen, remove residual adhesive down to 0.5 mm.

If necessary, fit new retaining strip (5) and rubber frame (6), paying attention to center markings in the process.

Insert positioner (8) for retaining strip (5) must be removed after it has been fitted on the windscreen but before the windscreen itself is installed.

If necessary, press expanding foam tape down with hand roller.

Virtually vertical part (B) of adhesive bead (1) must be positioned to rubber frame (6) and retaining strip (5).

Spread bead joint with special tool. 00 9 322

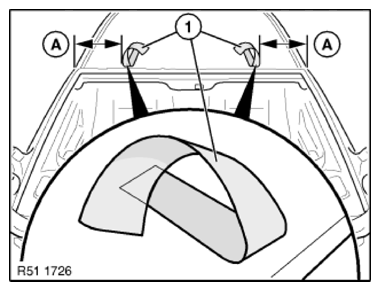

Stick two yellow plastic adhesive tapes (1) to roof at distance (A) from outside corners.

Length: 400 mm

1. 250 mm
   Fig 2: Plastic Adhesive Tape Position On Roof

   Courtesy of BMW OF NORTH AMERICA, INC.

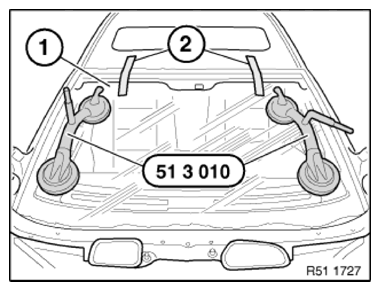

Working on windscreen (1) carefully with special tool 51 3 010 :

• Position at top
• Align sides evenly
• Insert at bottom and press down
• press upwards until sealing rests evenly on roof
• secure in terms of height in this position at top with two yellow plastic adhesive tapes (2)
  Fig 3: Mounting Window Glass With Suction Lifter (51 3 010)

  Courtesy of BMW OF NORTH AMERICA, INC.

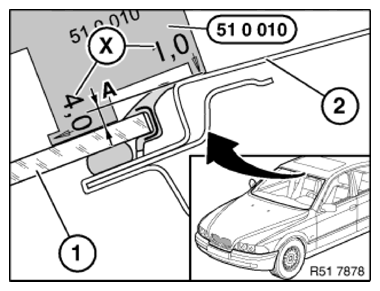

Preload on top of windscreen to prevent wind noise:

Windscreen (1) must be lower than roof outer skin (2). This is the only way to prevent wind noises.

Position special tool 51 0 010 in center of vehicle depending on dimension (A) and check underprotrusion of windscreen (1).

Windscreen underprotrusion (A):

1. A = 3.8 ±0.8 mm
   Fig 4: Adjusting Window Glass

   Courtesy of BMW OF NORTH AMERICA, INC.
2. X = Measurement stages 1... 4 mm
