Single-part underbody protection (except E90/E91/E92 AWD)

Release screws (1).

Pull underbody protection (2) in direction of arrow out of bracket (3).

Installation:

Ensure correct seating.

Center underbody protection (2) and tighten down screws (1).

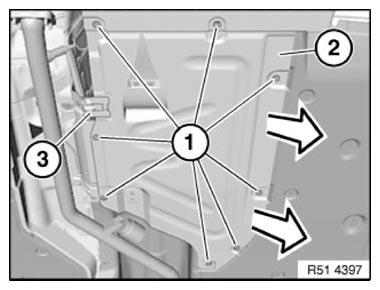

Fig 1: Pulling Underbody Protection
G09851166Courtesy of BMW OF NORTH AMERICA, INC.


Release screws (1).

Pull underbody protection (2) in direction of arrow out of bracket (3).

Installation:

Ensure correct seating.

Center underbody protection (2) and tighten down screws (1).

Fig 1: Pulling Underbody Protection
G09851169Courtesy of BMW OF NORTH AMERICA, INC.
