Single-part underbody protection (E90/E91/E92 AWD)

Release screws (1).

Remove underbody protection (2) downwards.

Installation:

Ensure correct seating.

Center underbody protection (2) and tighten down screws (1).

Fig 1: Underbody Protection With Screws
G09851167Courtesy of BMW OF NORTH AMERICA, INC.


Release screws (1).

Remove underbody protection (2) downwards.

Installation:

Ensure correct seating.

Center underbody protection (2) and tighten down screws (1).

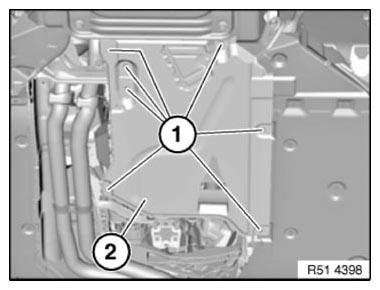

Fig 1: Underbody Protection With Screws
G09851170Courtesy of BMW OF NORTH AMERICA, INC.
