22 11 110 Replacing left engine support arm (N55)

Necessary preliminary work

• Secure engine in INSTALLATION POSITION .
• Remove CHARGE AIR DUCT .

Release earth strap (1) from engine support arm.

Release screw (2) and remove holder.

Release screws (3).

Remove engine support arm.

Tightening torque: 22 11 3AZ .

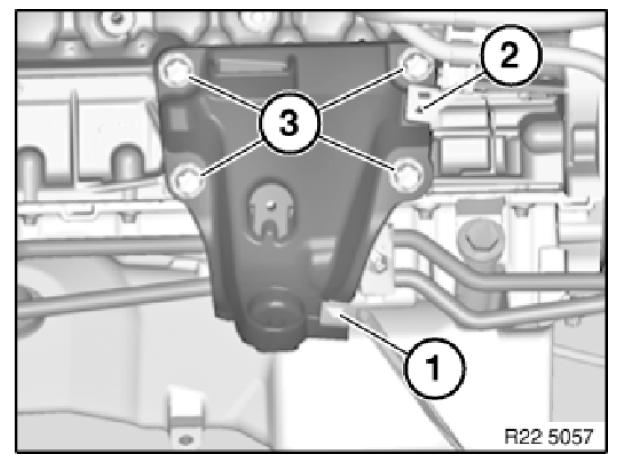

Graphic, N54 engine.

Fig 1: Identifying Earth Strap And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
