23... Universal BMW transmission take-up

Special tools required:

00 2 030
23 4 050

NOTE:

The universal transmission bracket is introduced for the E60 AWD
Suitable for manual and automatic transmissions

IMPORTANT: Front and rear supports (1) can be laterally adjusted by means of screws (2).
Carrier (3) of rear supports (1) can be longitudinally adjusted by means of screw.
Supports must be adapted in length and width to the transmission.

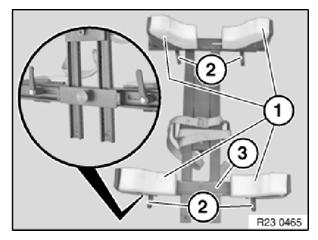

Fig 1: Identifying Transmission Rear Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission

Support transmission with special tools 23 4 050 , 00 2 030 .

IMPORTANT: Transmission must be secured with tensioning strap (1).

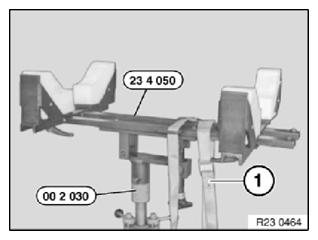

Fig 2: Supporting Transmission Using Special Tools (23 4 050)

Courtesy of BMW OF NORTH AMERICA, INC.
