11 23 010 Removing and installing/replacing vibration damper (N54, N57T)

Necessary preliminary work

• Remove front underbody protection  . See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION or 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION (AWD) .
• Remove DRIVE BELT .

Release screws (1).

Tightening torque: 11 23 1AZ .

Remove vibration damper (2).

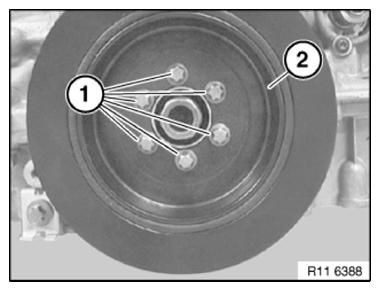

Fig 1: Identifying Vibration Damper Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
