11 34 560 Replacing all valve stem seals (N54, N54T)

Special tools required:

Necessary preliminary tasks

Remove CYLINDER HEAD .
Remove INTAKE CAMSHAFT .
Remove EXHAUST CAMSHAFT .
Remove ROLLER CAM FOLLOWER .
Remove all VALVE SPRINGS .

Firmly press special tool 11 1 480 onto old valve stem seals.

Detach valve stem seal from valve stem by turning and simultaneously pulling special tool 11 1 480 .

Installation note:

Insert all VALVES .

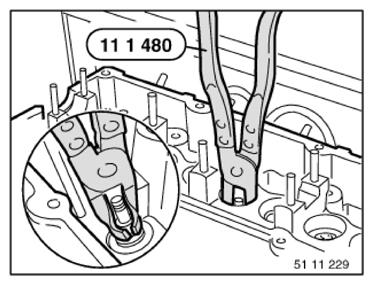

Fig 1: Detaching Valve Stem Seal From Valve Stem

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For use on the N54 engine, special tool 11 6 380 must be remachined according to the sketch with a 10 mm drill bit dia. to a depth of B = approx. 23 mm.
This modification has already been taken into account for reordering.

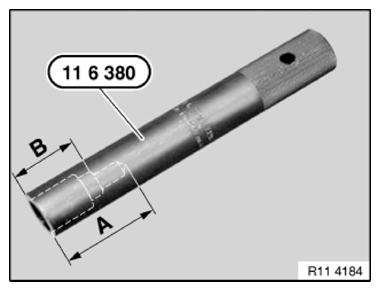

Fig 2: Identifying Drill Bit Depth

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Different diameters at valve stem.
All valve stem seals are color-coded.

Valve dia. 5 mm: valve stem seal is red or brown.

Valve dia. 6 mm: valve stem seal is green or light green.

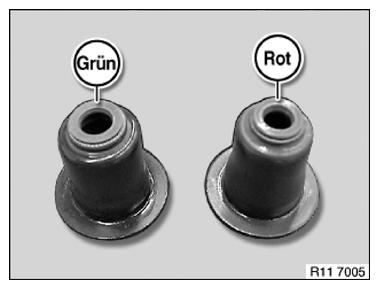

Fig 3: Identifying Valve Stem Diameters

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit the mounting sleeves (plastic sleeves) supplied in the spare part on the valve stem end

Lubricate mounting sleeve.

Press on valve stem seal with special tool 11 6 380 by hand up to stop.

NOTE: Graphic shows N46.

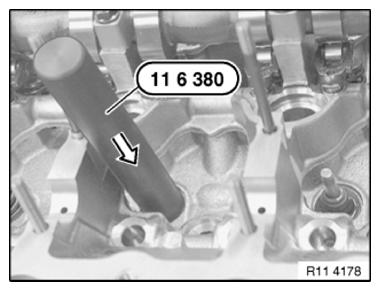

Fig 4: Identifying Special Tool (11 6 380)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
