11 28 010 Replacing drive belt for alternator (N54, N54T)
Special tools required:

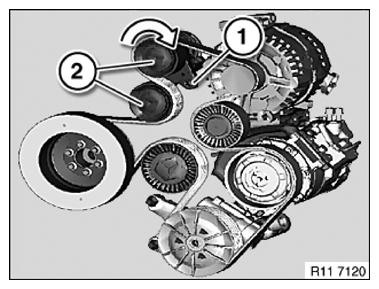

Depending on the build date (version), the idler pulleys can be fitted with and without grooves.
Necessary preliminary tasks
- Remove fan cowl. See 17 11 035 REMOVE AND INSTALL OR REPLACE THE FAN COWL WITH ELECTRIC FAN (N53, N54, N54T, N55) .

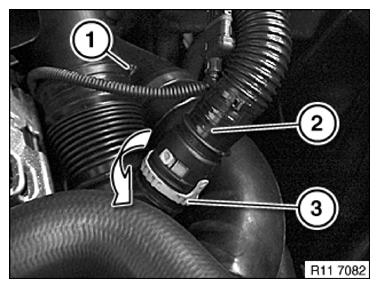

Unfasten hose clamp (1).
Release snap fastener (3) 90° on boost pressure pipe in direction of arrow.
Pull off air hose (2).
Installation note:
Bring lock (3) back 90° into installation position.
Recirculated air hose must audibly snap into place.

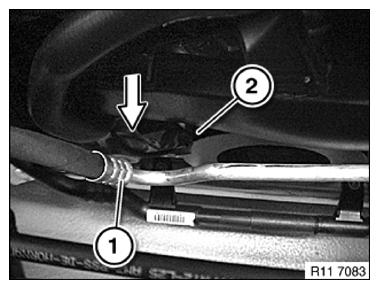

Unclip line (1) from holder (2) in direction of arrow.

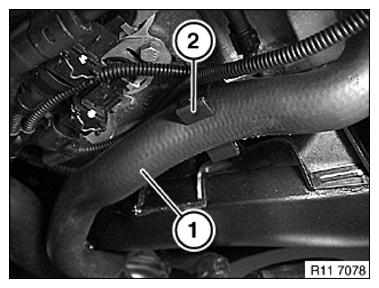

Release coolant hose (1) from bracket (2).

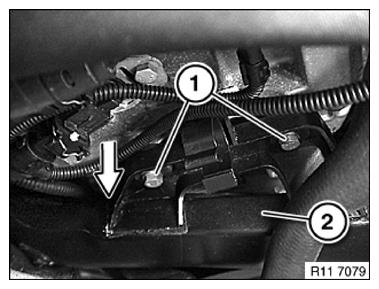

Release screw (1).
Fold air duct (2) down.

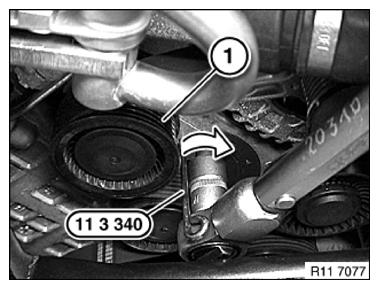

Turn belt tensioner (1) in direction of arrow until bore is flush on housing.
Secure belt tensioner in place with special tool 11 3 340 .

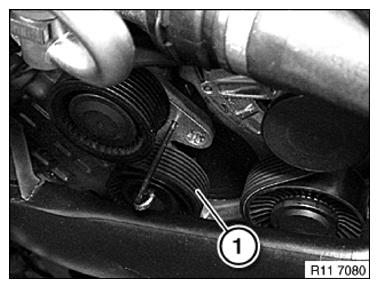

Remove drive belt (1).
Installation note:
Mark the direction of rotation of the drive belt if it is to be reused.

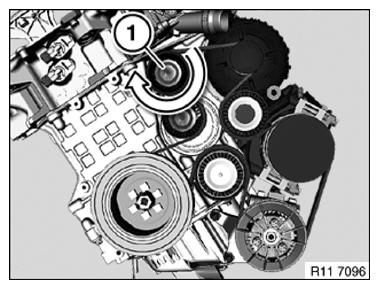

Pretension tensioning pulley (1) in direction of arrow.
Remove special tool 11 3 340 .
Installation note:

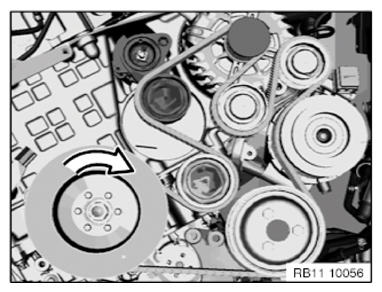

Note arrangement of drive belt
Belt drive system E71
Assemble engine.
Installation note:
Risk of damage!
Check that drive belt is in correct installation position.
