11 61 050 Removing and installing intake plenum (N54, N54T)

Necessary preliminary tasks

Remove INTAKE SILENCER HOUSING .
Remove ENGINE COVER .
Remove left CHARGE AIR DUCT .
If necessary, remove TRAILING LINK (risk of damage to charging pressure sensor).

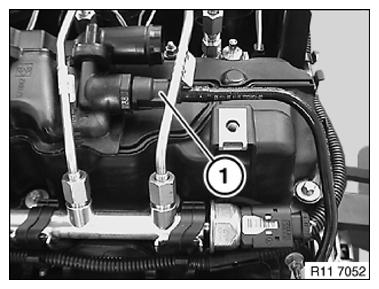

Detach engine ventilation (1) at cylinder head cover.

Fig 1: Identifying Engine Ventilation At Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

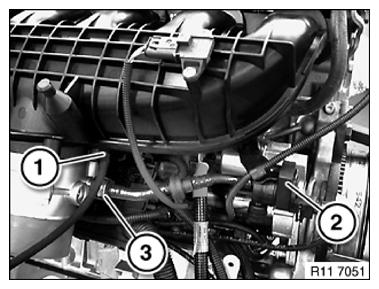

Pull off vacuum hose (1).

Detach tank vent valve (2) from mounting.

Release hose (3) and lay to one side.

Fig 2: Identifying Vacuum Hose, Tank And Vent Valve

Courtesy of BMW OF NORTH AMERICA, INC.

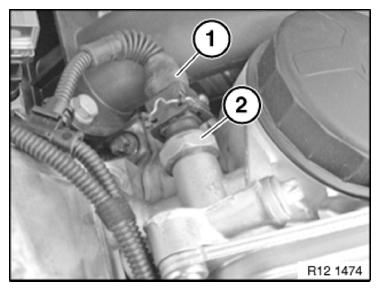

Disconnect plug connection (1) on oil pressure switch (2).

Fig 3: Identifying Plug Connection On Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.

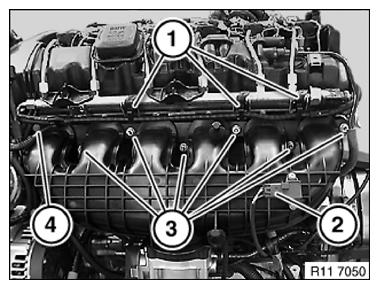

Release clamps (1) on fuel injection pipe and place to one side.

Disconnect plug connection (2).

NOTE: Do not detach fuel line.

Unscrew nuts (3).

Release screw (4).

Tightening torque: 11 61 1AZ .

Fig 4: Identifying Clamps, Plug Connection, Nuts & Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Raise intake air manifold.

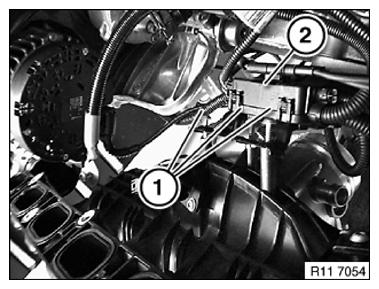

Release screws (1).

Place cable duct (2) to one side.

Fig 5: Identifying Cable Duct With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

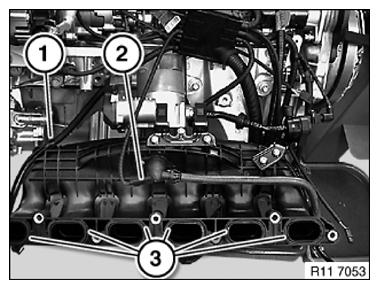

Cut cable tie (1).

Disconnect plug connection (2).

Installation note:

Replace all seals (3).

Fig 6: Identifying Cable Tie, Plug Connection & Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace all gaskets.

Assemble engine.
