11 14 151 Replacing radial crankshaft seal on transmission side (N55)

Special tools required:

Necessary preliminary work

Remove FLYWHEEL .

IMPORTANT: Magnet wheel (1) is magnetic.
Keep magnet wheel (1) in a plastic bag away from swarf.

Remove magnet wheel (1) from crankshaft.

Fig 1: Identifying Crankshaft Magnet Wheel

G09844573

Courtesy of BMW OF NORTH AMERICA, INC.

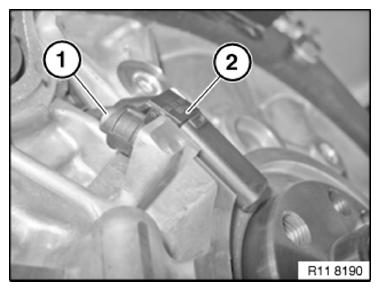

Release screw on pulse sensor (1).

Slide PULSE SENSOR (2) upwards.

Fig 2: Identifying Pulse Sensor Screw

G09844574

Courtesy of BMW OF NORTH AMERICA, INC.

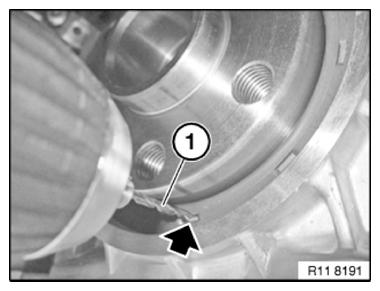

IMPORTANT: Drill size maximum 2.5 millimeters.
Remove swarf immediately.

Drill a hole with a drill (1) in the radial shaft seal (see arrow).

Fig 3: Locating Radial Shaft Seal Hole

G09844575

Courtesy of BMW OF NORTH AMERICA, INC.

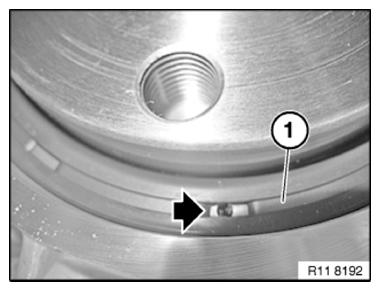

IMPORTANT: Immediately carefully remove swarf on the radial shaft seal (1).

Fig 4: Locating Radial Shaft Seal

G09844576

Courtesy of BMW OF NORTH AMERICA, INC.

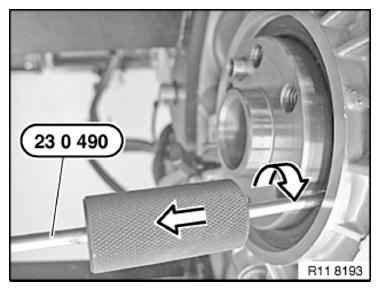

Screw in special tool 23 0 490 in direction of arrow.

Drive out radial shaft seal with impact weight in direction of arrow.

IMPORTANT: Immediately carefully remove residual swarf.

Fig 5: Removing Radial Shaft Seal

G09844577

Courtesy of BMW OF NORTH AMERICA, INC.

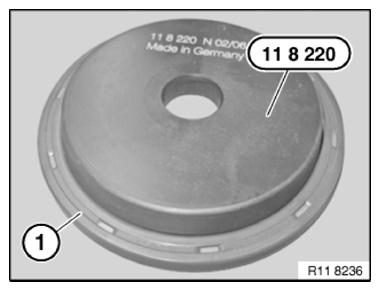

Prepare radial shaft seal (1) on special tool 11 8 220 .

Fig 6: Identifying Radial Shaft Seal

G09844578

Courtesy of BMW OF NORTH AMERICA, INC.

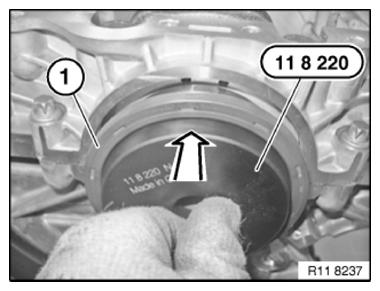

Position the radial shaft seal (1) with special tool 11 8 220 on the crankshaft.

Fig 7: Positioning Radial Shaft Seal Using Special Tool (11 8 220)

G09844579

Courtesy of BMW OF NORTH AMERICA, INC.

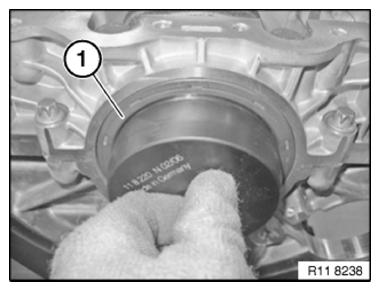

Brush radial shaft seal (1) over the special tool 11 8 220 .

Move radial shaft seal (1) parallel up against the crankcase.

Fig 8: Moving Radial Shaft Seal

G09844580

Courtesy of BMW OF NORTH AMERICA, INC.

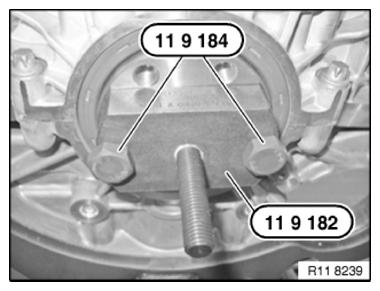

Secure special tool 11 9 182 to crankshaft with special tool 11 9 184 from set of special tools 11 9 180 .

Fig 9: Installing Special Tool (11 9 184) On Crankshaft

G09844581

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

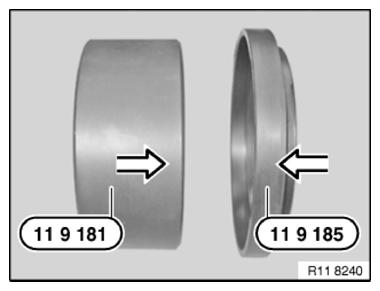

Prepare special tool 11 9 181 from set of special tools 11 9 180 for installation.

Connect special tool 11 9 185 to special tool 11 9 181 from set of special tools 11 9 180 .

Fig 10: Connecting Special Tool (11 9 185) Onto Special Tool (11 9 181)

G09844582

Courtesy of BMW OF NORTH AMERICA, INC.

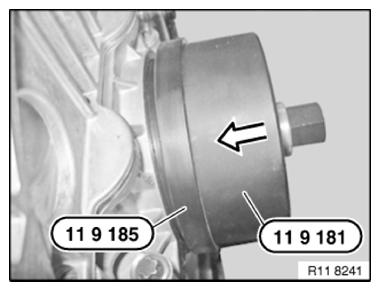

Pull in radial shaft seal with special tool 11 9 181 and 11 9 185 in conjunction with special tool 11 9 183 from set of special tools 11 9 180 .

Fig 11: Pulling Radial Shaft Seal

G09844583

Courtesy of BMW OF NORTH AMERICA, INC.

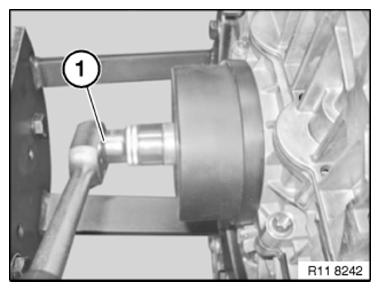

Screw on radial shaft seal with special tool 11 9 183 to limit position.

Fig 12: Installing Radial Shaft Seal Using Special Tool (11 9 183)

G09844584

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
