11 14 010 Replacing sealing cap for vacuum pump (N55)

Special tools required:

Necessary preliminary tasks

Removing sealing cap

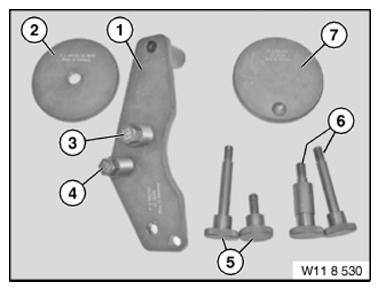

Prepare special tool 11 8 530 .

Remove special tool 11 8 533 from special tool 11 8 532 .

Install special tool 11 8 534 .

Special tool 11 8 536 is not required.

Fig 1: Identifying Sealing Cap With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 8 531 to long special tool 11 8 535 .

Short special tool 11 8 535 (short); a 6 mm thick M10 washer must be placed underneath between crankcase and special tool 11 8 531 .

NOTE: For purposes of clarity, graphics show alternator and power steering pump removed.

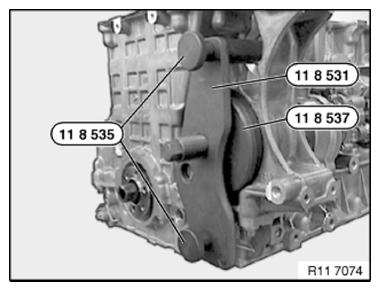

Fig 2: Identifying Special Tool (11 8 535) And (11 8 531)

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 11 8 537 must be positioned manually on sealing cap.

Screw in special tool 11 8 534 .

NOTE: The sealing cap is pressed out diagonally during this work step

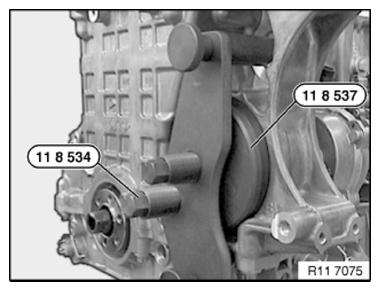

Fig 3: Positioning Special Tool (11 8 537)

Courtesy of BMW OF NORTH AMERICA, INC.

Installing sealing cap

Prepare special tool 11 8 530 .

Remove special tool 11 8 534 from special tool.

Install special tools 11 8 533 and 11 8 532 .

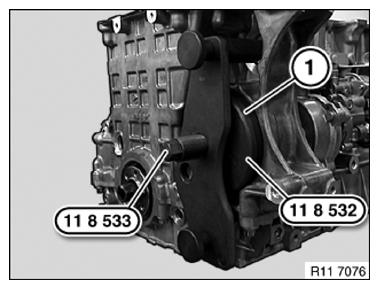

Fig 4: Identifying Sealing Cap With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in new sealing cap (1) with special tools 11 8 532 and 11 8 533 until flush with crankcase upper part.

Fig 5: Identifying Special Tools (11 8 532) And Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
