11 14 010 Replacing sealing cap for vacuum pump (N54, N54T)
Special tools required:
Necessary preliminary work
- Remove fan cowl. See 17 11 035 REMOVE AND INSTALL OR REPLACE THE FAN COWL WITH ELECTRIC FAN (N53, N54, N54T, N55) .
- Remove alternator DRIVE BELT .
- Remove both drive belt TENSIONERS .
NOTE:
For purposes of clarity, graphics show alternator and power steering pump removed.

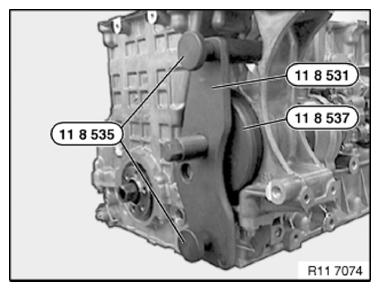

Secure special tool 11 8 535 with special tools 11 8 531 and 11 8 537 .

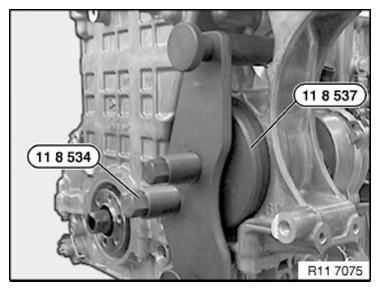

Position special tool 11 8 537 by hand on sealing cap.
Screw in special tool 11 8 534 .
NOTE:
The sealing cap is pressed out diagonally during this work step

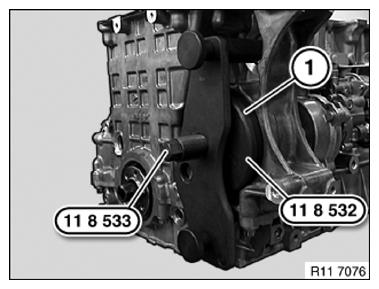

Screw in new sealing cap (1) with special tools 11 8 532 and 11 8 533 until flush with crankcase upper section.
Assemble engine.
