11 14 005 Replacing front crankshaft seal (N55) up to 02.2014

Special tools required:

Necessary preliminary tasks

Remove VIBRATION DAMPER .

IMPORTANT: Do not release central bolt.
If the central bolt is released, the sprockets of the timing chain and the oil pump will no longer be non-positively connected to the crankshaft. Intake and exhaust camshafts can turn in relation to crankshaft.
Risk of damage!

Fig 1: Identifying Crankshaft Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 371 with 80 Newton meters into the crankshaft seal.

Screw in spindle 11 0 372 .

Release crankshaft seal from housing.

Repeat the operation several times if necessary.

Fig 2: Releasing Crankshaft Seal From Housing

Courtesy of BMW OF NORTH AMERICA, INC.

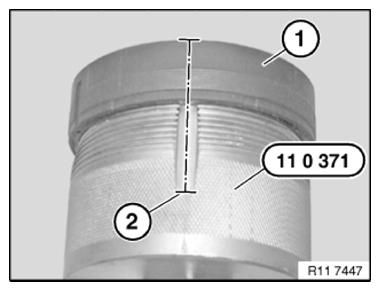

Carefully saw open crankshaft seal (1) at cutting line (2).

Remove crankshaft seal (1) from special tool 11 0 371 .

Fig 3: Aligning Crankshaft Seal At Cutting Line

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The following text describes installation and sealing between the engine block and crankshaft seal.
The engine block will not be leak proof at the outside of the crankshaft seal if you fail to comply with the individual work steps and the work sequence.

Installation note:

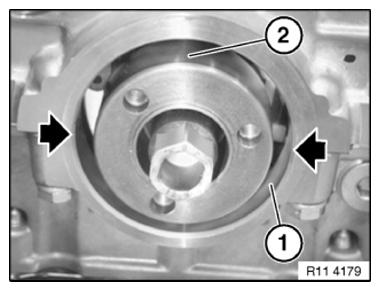

Clean sealing surface (1) and degrease thoroughly in area of housing partition.

Apply a light coat of oil to running surface (2) of crankshaft seal.

Graphic N42.

Fig 4: Applying Oil To Crankshaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

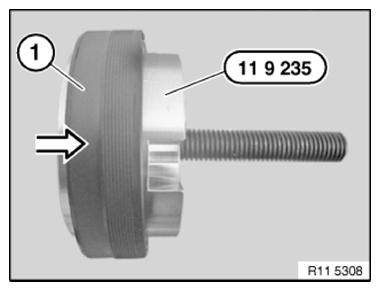

Push radial shaft seal (1) 11 9 235 carefully in direction of arrow on the special tool.

Fig 5: Pushing Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: 11 9 235 Special tool can only be fastened with 2 opposite bolts.
Determine hole pattern on special tool.

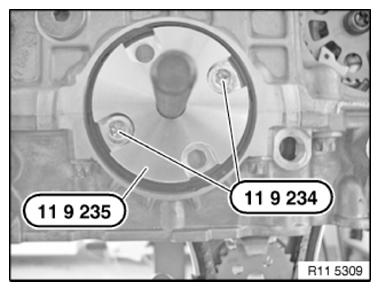

Screw special tool 11 9 235 with special tool 11 9 234 on crankshaft.

Fig 6: Identifying Special Tool (11 9 235) And (11 9 234)

Courtesy of BMW OF NORTH AMERICA, INC.

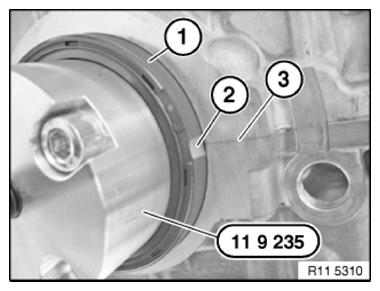

Align groove (2) of radial shaft seal (1) centered to the housing partition (3.

IMPORTANT: After installation, the grooves must be filled with sealing compound.

Fig 7: Identifying Radial Shaft Seal, Housing Partition And Groove

Courtesy of BMW OF NORTH AMERICA, INC.

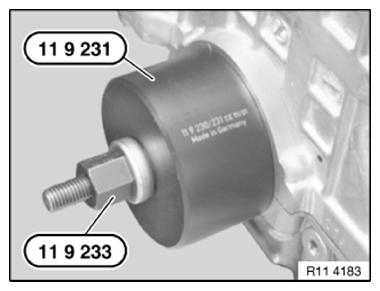

Draw in radial shaft seal with special tool 11 9 231 in conjunction with special tool 11 9 233 until flush.

Fig 8: Identifying Special Tool (11 9 231) And (11 9 233)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Use PRIMER 1.3 AND LIQUID SEAL 1.4 .

Prepare liquid sealing compound (1) in special tool 11 4 370 .

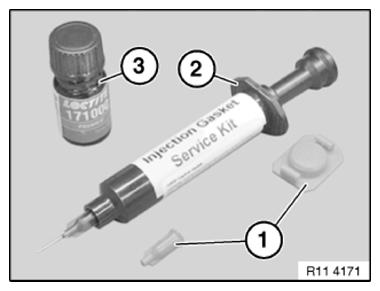

Remove sealing caps (1) from injector (2).

Screw on metering needle.

Insert piston for pressing out.

Syringe (2) contains the sealing compound Loctite, manufacturer's number 128357.

Bottle (3) contains the primer Loctite, manufacturer's number 171000.

Fig 9: Identifying Sealing Caps, Injector And Syringe

Courtesy of BMW OF NORTH AMERICA, INC.

Before filling with sealing compound:

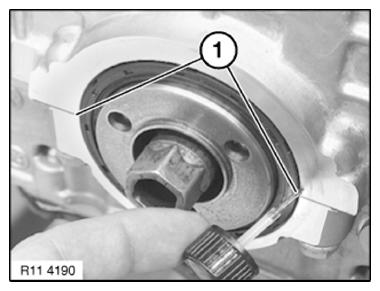

Moisten brush with Loctite primer, manufacturer's number 171000. Insert brush as far as possible into grooves (1) on crankshaft seal in order to coat housing partition on engine block.

Graphic N42.

Fig 10: Applying Sealing Compound In Both Grooves

Courtesy of BMW OF NORTH AMERICA, INC.

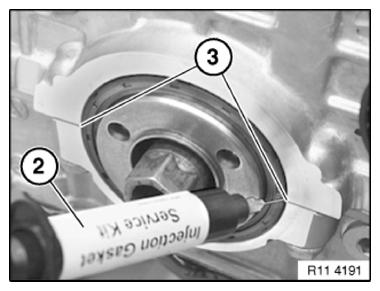

Using syringe (2), fill both grooves (3) flush with Loctite sealing compound, manufacturer's number 128357.

Graphic N42.

Fig 11: Filling Grooves Flush With Loctite Sealing Compound

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Loctite primer, manufacturer's number 171000, binds the Loctite sealing compound, manufacturer's number 128357, and prevents leakage.

Coat surface of sealing compound in both grooves (1) with Loctite primer, manufacturer's number 171000.

Graphic N42.

Fig 12: Applying Sealing Compound In Both Grooves

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
