11 22 513 Replacing roller bearing for dual-mass flywheel

Special tools required:

Necessary preliminary tasks

Pressing out roller bearing

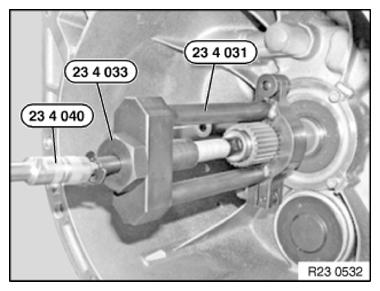

Install special tool 23 4 031 in front of drive shaft spline teeth.

Screw in grease spindle 23 4 033 completely.

Brass tip must immerse fully into roller bearing.

Press in grease with grease gun 23 4 040 until roller bearing is disengaged from drive shaft.

When tensioning spring is compressed to full extent, release grease spindle and twist out slightly until spring is relieved.

Fig 1: Installing Special Tool (23 4 031) In Drive Shaft Spline Teeth

Courtesy of BMW OF NORTH AMERICA, INC.

Repeat grease press-in procedure until roller bearing has released completely.

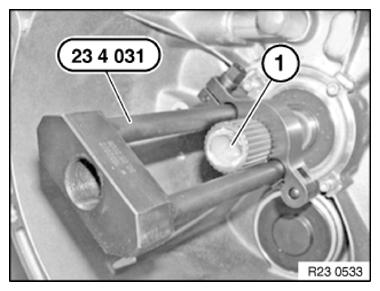

Remove special tool 23 4 031 .

Remove pressed-in grease (1) from drive shaft completely.

Then reinstall special tool.

Fig 2: Removing Special Tool (23 4 031)

Courtesy of BMW OF NORTH AMERICA, INC.

Pressing in roller bearing

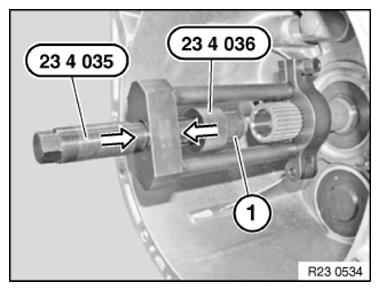

Slide in pressure spindle 23 4 035 .

Attach thrust piece 23 4 036 to pressure spindle.

Push roller bearing (1) onto thrust piece.

Fig 3: Attaching Thrust Piece (23 4 036) To Pressure Spindle

Courtesy of BMW OF NORTH AMERICA, INC.

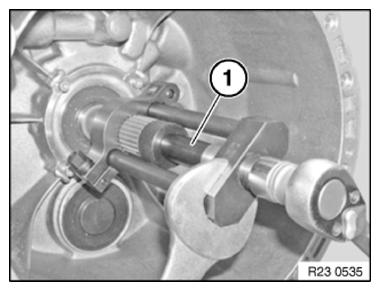

Screw in pressure spindle (1) until roller bearing is fully pressed in.

Fig 4: Removing Pressure Spindle

Courtesy of BMW OF NORTH AMERICA, INC.
