11 00 Removing and installing/replacing ignition coil cover (N54, N54T)

Necessary preliminary work

Release screws.

Tightening torque: 11 12 7AZ .

Remove ignition coil cover (1) towards top.

NOTE: For purposes of improved clarity, illustration and descriptions shows wiring harness and trailing link removed.

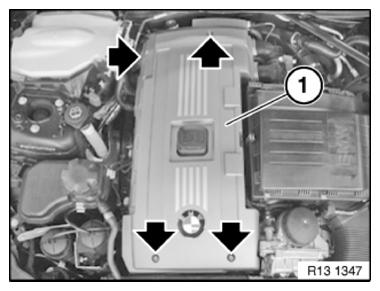

Fig 1: Identifying Ignition Coil Cover

Courtesy of BMW OF NORTH AMERICA, INC.
