11 31 505 Adjusting camshaft timing (N54, N54T)

Special tools required:

IMPORTANT: Risk of damage!
To open the central bolt at the camshaft, grip hexagon head on rear of camshaft.

Necessary preliminary tasks

Remove CYLINDER HEAD COVER .

Remove fastener (1) in direction of arrow.

Installation note:

Install fastener (1) with bore facing outwards.

Fig 1: Removing Cylinder Head Cover Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate crankshaft at central bolt into TDC setting.

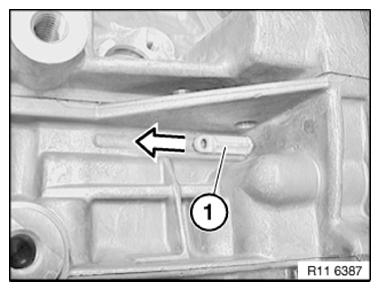

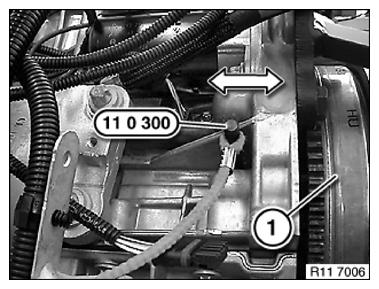

Slide in special tool 11 0 300 in direction of arrow and block crankshaft.

IMPORTANT: On engines with automatic transmissions, there is shortly before the special tool bore for the TDC position a large bore which can be confused with the special tool bore.

Fig 2: Sliding Special Tool (11 0 300)

Courtesy of BMW OF NORTH AMERICA, INC.

If the flywheel is secured in the correct bore with special tool 11 0 300 , the engine can no longer be moved at the central bolt.

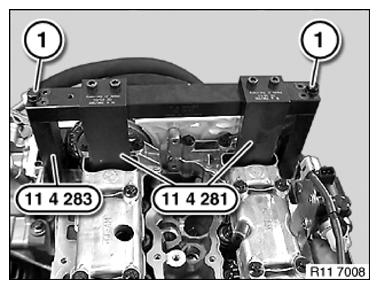

Fit special tool 11 4 283 with screws (1).

Fit special tool 11 4 281 on special tool 11 4 283 .

IMPORTANT: If special tool 11 4 281 cannot be installed, the camshaft must be rotated at the hexagon head at the rear.

Fig 3: Identifying Special Tool (11 4 281) And (11 4 283)

Courtesy of BMW OF NORTH AMERICA, INC.

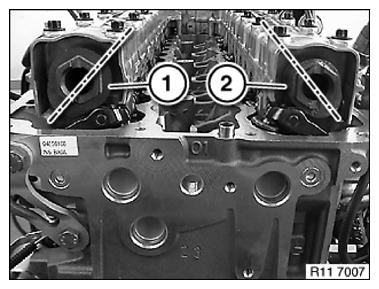

With cylinder No. 1 in ignition TDC position, cams of exhaust camshaft (2) and intake camshaft (1) at 6th cylinder point downwards at an angle.

NOTE: If the timing is adjusted while the engine is installed, the position of the camshaft can only be checked with a mirror.

Fig 4: Identifying Intake And Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolt (1) of exhaust camshaft.

Installation note:

Replace screw (1).

Tightening torque: 11 36 1AZ .

Release central bolt (2) of inlet camshaft.

Installation note:

Replace screw (2).

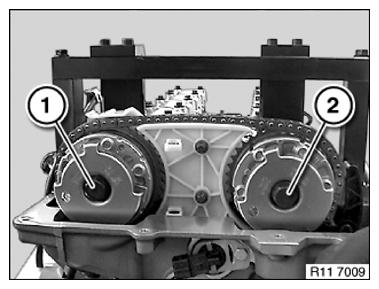

Fig 5: Identifying Intake And Exhaust Camshaft Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque: 11 36 1AZ .

Rotate increment wheels until retaining pins on special tool 11 8 520 match up.

Push special tool 11 8 520 onto cylinder head.

Secure special tool 11 8 520 with bolts (1 and 2).

NOTE: Bolts M6 x 45 (1 and 2) with captive washer.

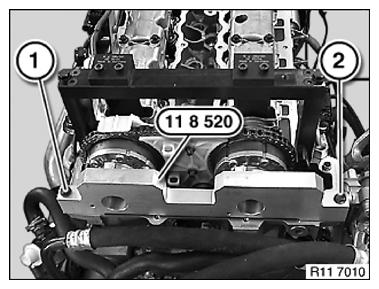

Fig 6: Installing Special Tool (11 8 520) Onto Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

REMOVE CHAIN TENSIONER (1).

Screw special tool 11 9 340 into cylinder head.

Pre-tension timing chain with special tool 00 9 250to 0.6 Nm.

Tighten central bolts (2 and 3) with special tool 00 9 120 .

Tightening torque: 11 36 1AZ .

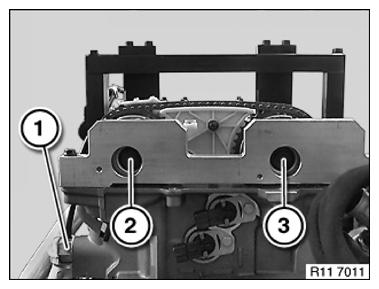

Fig 7: Identifying Chain Tensioner Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Crank engine on the central bolt twice in the direction of engine rotation and check the TIMING .

Assemble engine.
