34 33 071 Replacing vacuum hose for brake booster (N54)

Necessary preliminary tasks

IMPORTANT: Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake servo.

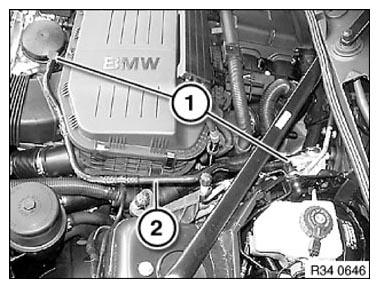

Unlock quick-release fasteners (1) and detach vacuum line (2).

Fig 1: Identifying Quick-Release Fasteners And Vacuum Line

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

IMPORTANT: Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake booster.

Unlock quick-release fastener (1) and pull out vacuum line (2).

Fig 1: Pulling Out Vacuum Line

Courtesy of BMW OF NORTH AMERICA, INC.

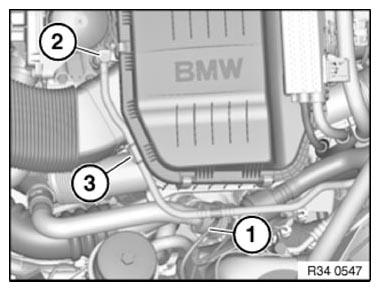

Pull off vacuum hose (1).

Unlock and disconnect quick-connect coupling (2).

Unclip vacuum line from holder (3) and feed out.

Fig 2: Identifying Vacuum Line From Holder

Courtesy of BMW OF NORTH AMERICA, INC.
