51 49... Removing and installing/replacing trim for rear lid on left or right

Unfasten clip (1).

Remove trim (2) in direction of arrow.

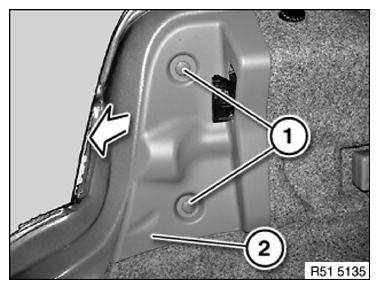

Fig 1: Identifying Clips And Cover
G09862226Courtesy of BMW OF NORTH AMERICA, INC.
