52 24 010 Removing and installing/replacing backrest

Necessary preliminary tasks

• Remove BACKREST SIDE SECTION .

Release backrest and fold down.

Release screws (1) on backrest.

Remove backrest.

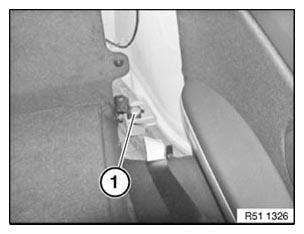

Fig 1: Identifying Screws On Backrest

Courtesy of BMW OF NORTH AMERICA, INC.
