52 24 000 Removing and installing/replacing left or right rear seat

Unclip left or right rear seat towards top.

Raise rear seat approx. 30 cm and remove towards front.

Installation:

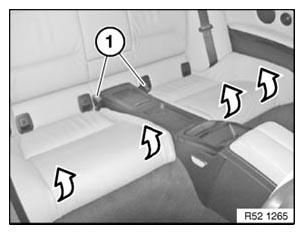

Feed seat belt buckles (1) into openings in rear seat.

Fig 1: Feeding Seat Belt Buckles Into Openings In Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

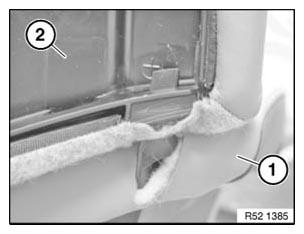

Insert pin on rear seat (1) correctly into opening in rest side section (2).

Pin must not  be damaged.

Fig 2: Identifying Pin On Rear Seat And Rest Side Section

Courtesy of BMW OF NORTH AMERICA, INC.
