51 23... Adjusting/replacing bump stops

The illustrations are schematic representations and are to be applied to the relevant vehicle type.

Version 1:

Following parts must not be damaged:

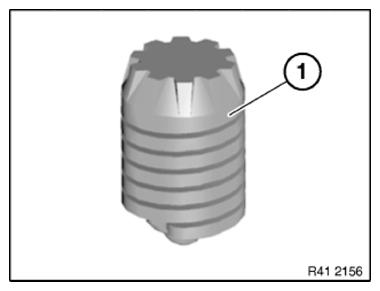

(1) Bump stop

Fig 1: Identifying Bump Stop
Courtesy of BMW OF NORTH AMERICA, INC.

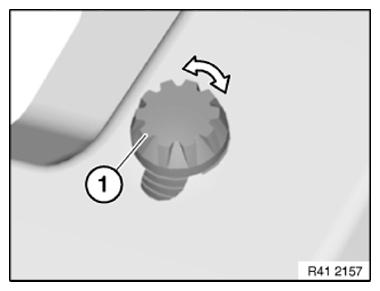

Adjust bump stop (1) to correct height by turning left or right.

Fig 2: Adjusting Bump Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Replace damaged bump stops:

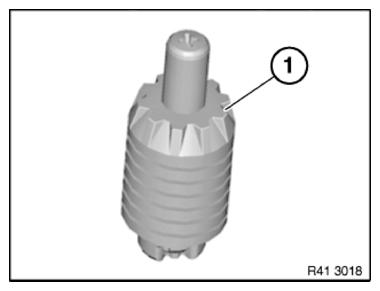

(1) Bump stop with ejector

Fig 3: Identifying Bump Stop With Ejector
Courtesy of BMW OF NORTH AMERICA, INC.

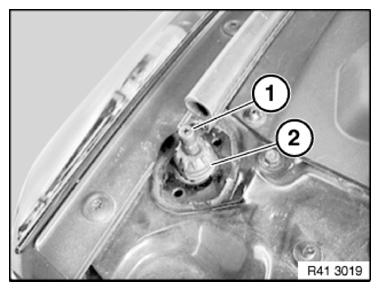

Press ejector (1) into bump stop and, in this position, twist approx. 90° counterclockwise with a Phillips screwdriver.

This locks the ejectors (1) in the bump stops.

Adjust bump stop (2) to correct height by turning left or right.

Unlock the ejector (1) again after completing adjustment.

Fig 4: Identifying Ejector And Bump Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Version 3:

Replace damaged bump stops:

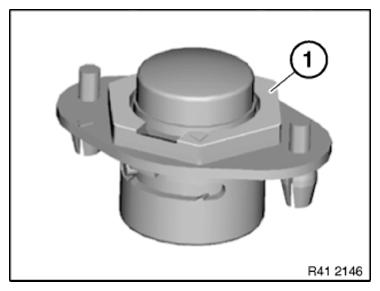

(1) Bump stop

Fig 5: Identifying Bump Stop
Courtesy of BMW OF NORTH AMERICA, INC.

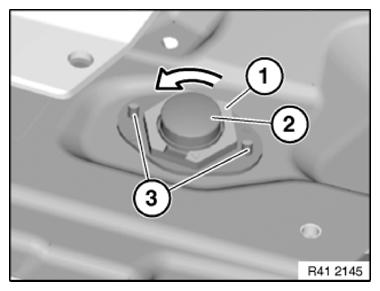

Turn lock (1) 45° counterclockwise.

Pull bump stop (2) upwards.

Close lid slowly until it is at the same height as the side panel.

Open lid and turn lock (1) clockwise.

Installation:

Press bump stop into panel and drive in expanding pins (3).

Fig 6: Identifying Bump Stop, Lock, And Expanding Pins

Courtesy of BMW OF NORTH AMERICA, INC.

The graphics are schematic representations and are to be applied to the relevant vehicle type.

Prerequisite: Lid must be correctly adjusted.

Version 1:

Following parts must not be damaged:

(1) Bump stop

Fig 1: Identifying Bump Stop
Courtesy of BMW OF NORTH AMERICA, INC.

Adjust stop pad (1) to correct height by turning left or right.

Fig 2: Adjusting Bump Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Replace damaged stop pads:

(1) Bump stop

Fig 3: Identifying Bump Stop
Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting version 2:

Stop (1) 45° counter-clockwise.

Pull stop pad (2) upwards.

Close lid slowly until it is at the same height as the side wall.

Open flap and turn stop (1) clockwise.

Installation note:

Press stop pad into panel and drive in expanding pins (3).

Fig 4: Identifying Bump Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Version 3:

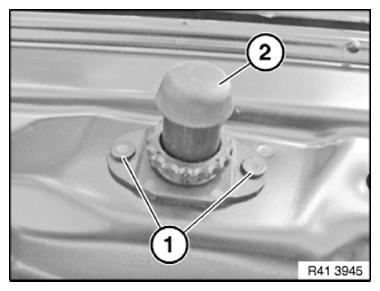

Lever out expanding rivets (1).

Remove stop pad (2).

Fig 5: Identifying Stop Pad And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting version 3:

Checking correct adjustment:

Insert a strip of paper (normal writing paper) between stop pad and limit position on body.
Close flap. Make sure that the paper strip remains between stop pad and limit position.
The stop pad is correctly adjusted when the paper strip can be pulled out "with slight resistance".

Adjustment procedures

Screw in stop pad until the paper strip can be easily pulled out.

Fig 6: Adjusting Bump Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Then unscrew stop pad until the paper strip cannot be pulled out any more.

Screw in stop pad until the paper strip can be pulled out with "slight" resistance.

Version 4:

Lever out expanding rivets (1).

Remove stop pad (2).

Adjusting version 4:

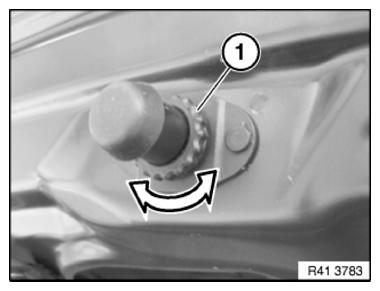

Set stop pad to the correct height by turning to the left or right.

Fig 7: Identifying Stop Pad And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Version 5:

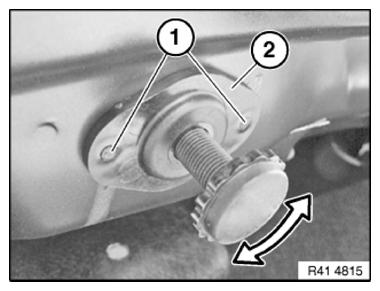

Release screws (1) and remove stop pad (2).

Adjusting version 5:

Set stop pad to the correct height by turning to the left or right.

Fig 8: Identifying Stop Pad And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
