51 11... Installing/replacing number/license plate (without base)

NOTE: Drilling template obtainable via BMW.

Initial fitting

Place drilling hole template (1) on bumper (2).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to car registration number plate specifications.

Remove template (1) and secure car registration number plate with screws provided.

Tightening torque 51 11 3AZ .

Fit protective caps.

Fig 1: Placing Template On Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Place drilling hole template (1) on radiator grille (2) and bumper (3).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to car registration number plate specifications.

Remove template (1) and secure car registration number plate with screws provided.

Tightening torque 51 11 3AZ .

Fit protective caps.

Fig 2: Placing Template On Radiator Grille And Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Thread repair

Drill out defective hole in bumper (2) to 9.5 mm diameter.

Insert blind rivet nut (1)*.

Secure car registration number plate (3) with car registration number plate (4)*.

Tightening torque 51 11 4AZ .

NOTE: * Sourcing reference: BMW Parts Department

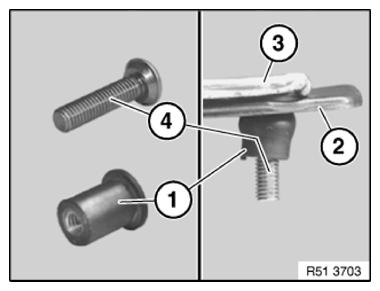

Fig 3: Identifying License Plate, Hole In Bumper, And Blind Rivet Nut

Courtesy of BMW OF NORTH AMERICA, INC.
