61 31 011 Removing and installing/replacing volute spring cassette
WARNING:
Move wheels into straight-ahead position and do not alter this position during the repair work.
Necessary preliminary tasks:

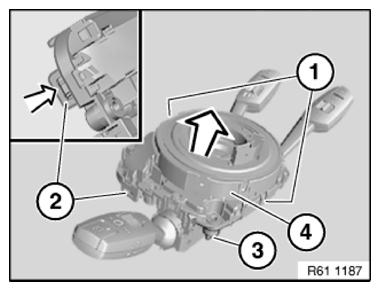

Unlock catches (1).
Press lock (2) and remove volute spring cassette (4) in direction of arrow from fixture for steering column stalk (3).
IMPORTANT:
- Do not turn ring (1).
- Also turning ring (1) through 360° is not permitted!
- Secure ring (1) against unauthorized turning (e.g. with adhesive tape).
Installation:

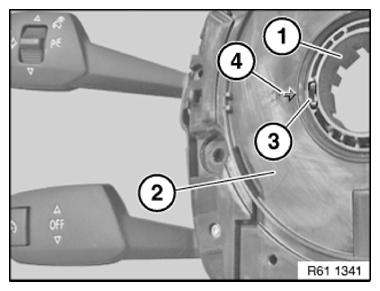

Notch (3) on ring (1) must line up with arrow (4) on switch (2).
IMPORTANT:

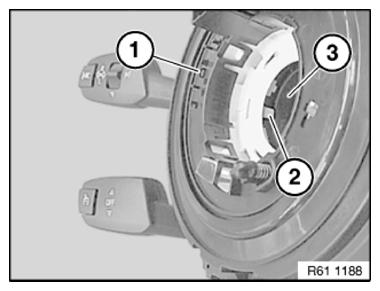

Fit volute spring cassette (1) so that guide (2) can slide exactly into associated notch on switch (3).
