65 75 090 Removing and installing/replacing interior movement detection module in left or right B-pillar

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks

Release screw (1).

Detach interior movement detection module (2) in direction of arrow from side trim.

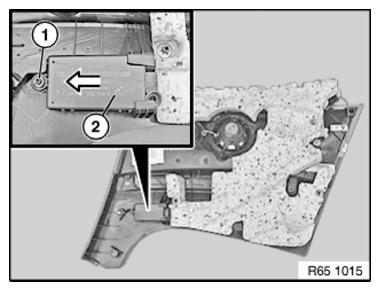

Fig 1: Detaching Interior Movement Detection Module

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement
