65 75 080 Removing and installing/replacing interior movement detection module in left or right front door

Necessary preliminary tasks

• Remove FRONT DOOR TRIM .

Release bolt (1) and feed out interior movement detection module (2).

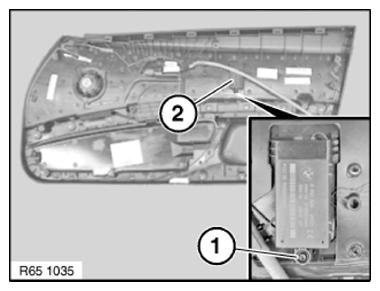

Fig 1: Identifying Interior Detection Module And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out CODING/PROGRAMMING .
