64 11 992 Removing and installing/replacing solar sensor

Special tools required:

Lever out solar sensor (1) with special tool 00 9 340 in direction of arrow.

NOTE: Secure disconnected wiring harness of solar sensor (1) against falling out below instrument panel trim (2).

Disconnect associated plug connection and remove solar sensor (1) from instrument panel trim (2).

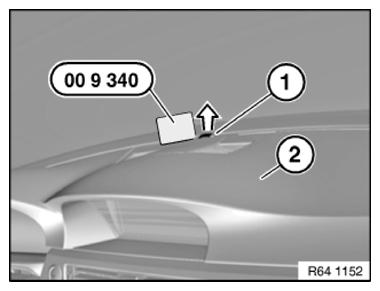

Fig 1: Removing Solar Sensor From Instrument Panel Trim
G09863769Courtesy of BMW OF NORTH AMERICA, INC.
