64 11 377 Removing and installing/replacing heater/air conditioner control panel (version without CCC/ASK)

Special tools required:

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) !

NOTE: C ar C ommunication C omputer (CCC)
A udio S ystem K ontroller/Controller (ASK)

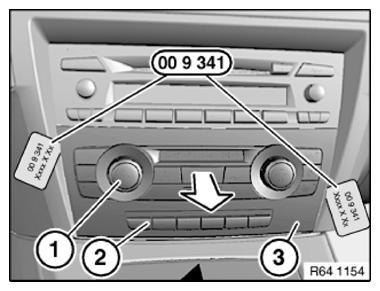

Lever out heater/air conditioner control panel (1) with special tool 00 9 340 and pull.

Disconnect associated plug connections.

Remove heater/air conditioner control panel (1) complete with center console switch cluster (2) and trim (3).

Fig 1: Removing Heater/Air Conditioner Control Panel Complete With Center Console Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

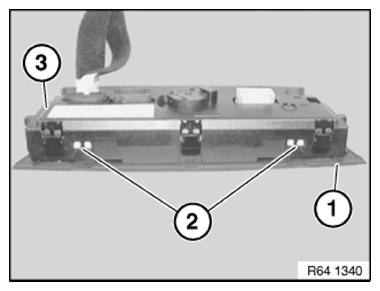

Carefully unclip control panel trim (1) at inner retaining points (2) only.

IMPORTANT: Risk of damage to control panel (3)!

Fig 2: Identifying Control Panel, Trim, And Inner Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

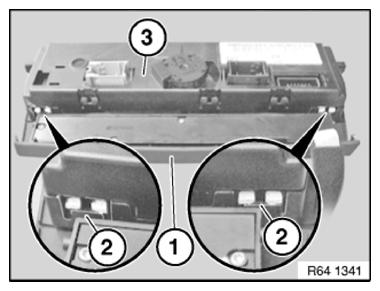

Carefully unclip control panel trim (1) at outer retaining points (2) only.

Remove trim (1) from control panel (3).

Fig 3: Identifying Control Panel, Trim, And Outer Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement
