51 43 063 Removing and installing/replacing upper section on rear left or right armrest

Special tools required:

• 00 9 317

Unclip trim (1) upwards with special tool 00 9 317 .

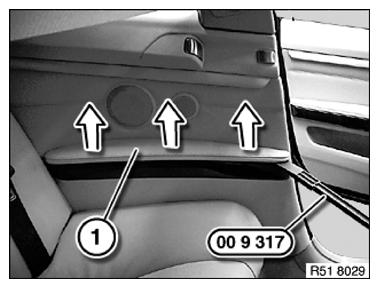

Fig 1: Removing Trim Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on trim (2) are secured with retaining clips (3) in door trim panel.

Catches (1) on trim (2) and retaining clips (3) on door trim panel must not be damaged.

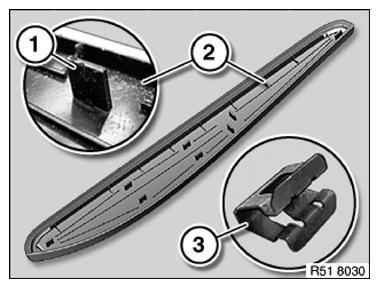

Fig 2: Identifying Catches And Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
