51 37 000 Removing and installing complete rear left or right power window unit

Special tools required:

51 2 220

WARNING: Power window unit has no anti-trapping mechanism.

Necessary preliminary tasks

Remove LOWER SECTION OF SIDE TRIM AT REAR
Remove OUTER WINDOW CAVITY COVER STRIP

Disconnect plug connections on aerial amplifier (1).

Release screws (2) and remove connecting bracket (3).

Tightening torque 51 37 3AZ .

Installation:

Ensure seal (4) is correctly seated.

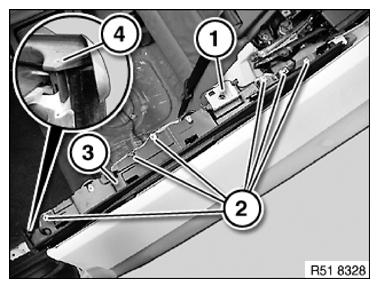

Fig 1: Identifying Aerial Amplifier, Screws, Bracket, And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Move side window into uppermost end position.

Release/feed out cable holders (1).

Lever out cover (2) and slacken bolt underneath.

Release screws (3).

Tightening torque 51 37 3AZ .

Feed out power window unit completely in upward direction.

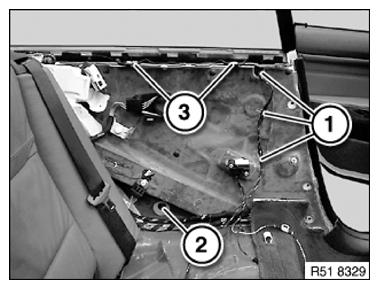

Fig 2: Identifying Cable Holders, Cover, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable holders (1).

Disconnect plug connection (2).

IMPORTANT: Risk of damage!
The basic setting procedure for the power window must be carried out before installing.
After installation, the power window regulator/side window must be adjusted with respect to the vehicle body.

Fig 3: Identifying Cable Holders And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Basic setting of power window:

Check dimension (X) at power window regulator.

If necessary set dimension (X) with special tool 51 2 220 at screw (1).

Measurement (X) = 6 mm

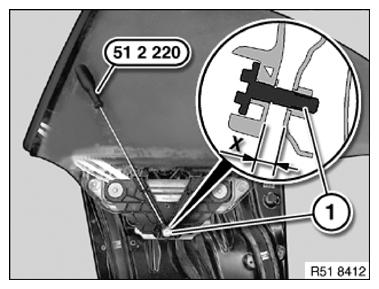

Fig 4: Identifying Power Window Regulator Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Presettings after fitting power window unit:

Adjust side window glass (1) in accordance with dimension (A) to body (2).

Measuring points in B-pillar area and release for rear screw connection of side window glass (1).

Dimension (A) = 7 ± 1 mm

Tighten down screws (3).

Tightening torque 51 37 4AZ .

Check function.

Adjust SIDE WINDOW GLASS (1) .

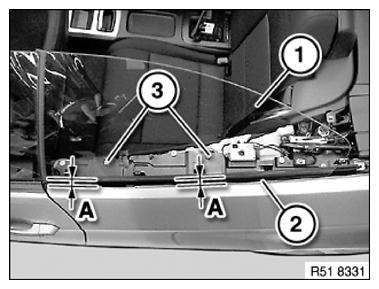

Fig 5: Identifying Transverse Positioning For Side Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
