51 12 090 Removing and installing/replacing trim grille in bumper trim

Necessary preliminary tasks

• Remove rear BUMPER TRIM

Release catches (1) and remove center grille (2).

Installation:

Catches (1) must not be damaged

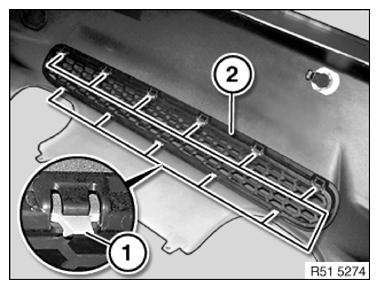

Fig 1: Identifying Center Grille Catches

Courtesy of BMW OF NORTH AMERICA, INC.
