51 16 260 Removing and installing/replacing front section of rear console trim

Special tools required:

Apply special tool 00 9 317 at side and unclip trim (1) in upward direction from retaining clips (2).

If necessary, disconnect plug connections and remove trim (1).

Installation:

Clips (2) must not be damaged.

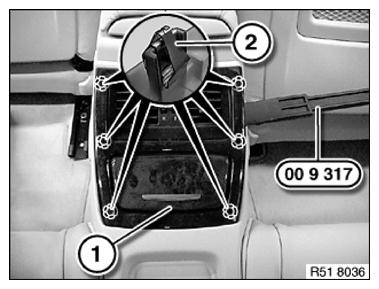

Fig 1: Identifying Rear Console Trim And Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Release screws (1) and remove ashtray/oddments tray (2).

Release screws (3) and remove oddments tray/fresh-air grille (4).

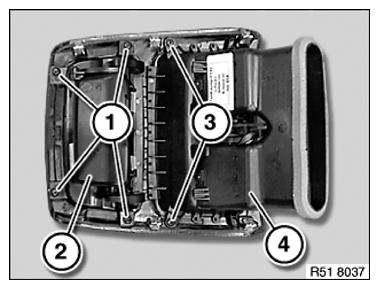

Fig 2: Identifying Ashtray/Oddments Tray, Fresh-Air Grille, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
