51 16 080 Removing and installing or replacing sun visor and left or right counter-support

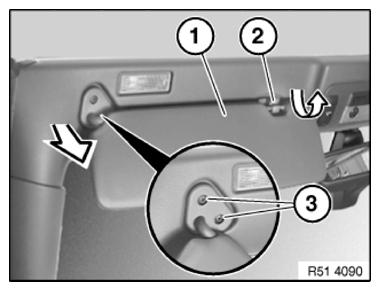

Lever sun visor (1) out of counter-support (2) in direction of arrow.
Release screws (3) and feed out sun visor towards bottom.
If necessary, disconnect plug connection and remove sun visor (1).
Installation:
Perform function check on lighting.

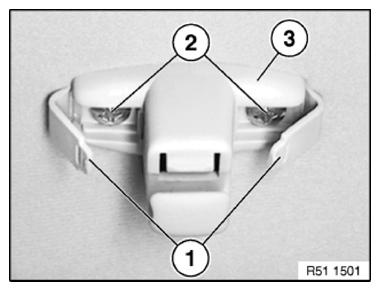

Lever out side strips (1).
Release screws (2) and remove counter-support (3).
Installation:
Strips (1) must not be damaged.
