51 16 000 Removing and installing or replacing mirror on left or right front door

Unclip trim (1) from retaining clip (2) in inward direction.

Slide trim (1) upwards slightly out of guide (3) and remove.

NOTE: On version with speaker, trim (1) can remain hanging over door trim panel.

Installation:

Retaining clip (2) must be fitted on door.

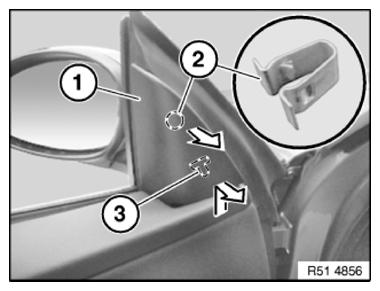

Fig 1: Identifying Trim, Retaining Clip, And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of trim must not be damaged or missing:

Sound insulation
Retaining lug
Guide

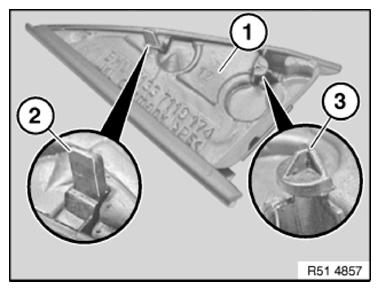

Fig 2: Identifying Sound Insulation, Retaining Lug And Guide
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

Secure mirror against falling down.

Disconnect plug connection (1).

Fold seal (2) to one side slightly and release screws (3).

Tightening torque 51 16 1AZ .

Installation:

Rubber grommet for plug connection (1) must be correctly seated on door.

Seal (2) must be correctly seated on door trim panel and door.

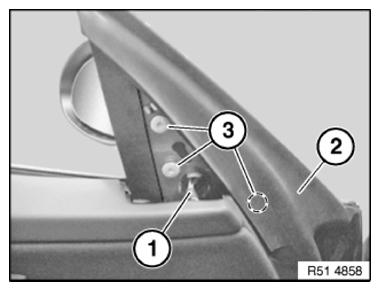

Fig 3: Identifying Rubber Grommet, Seal, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove mirror (1) outwards.

Installation:

Check function.

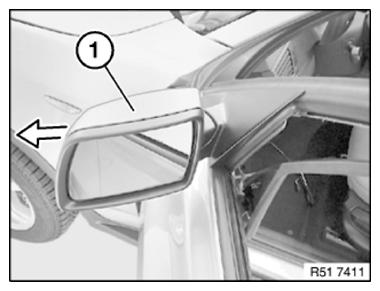

Fig 4: Removing Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement
