51 41 018 Replacing speaker trim on front left or right door trim panel

Necessary preliminary tasks

• Remove SPEAKER IN DOOR TRIM PANEL at front

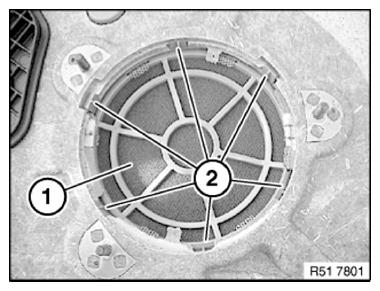

Carefully release speaker trim (1) at catches (2) and remove in outwards direction.

Installation:

Make sure catches (2) are in correct position. Speaker trim (1) can only be installed in one position.

Fig 1: Identifying Speaker Trim Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

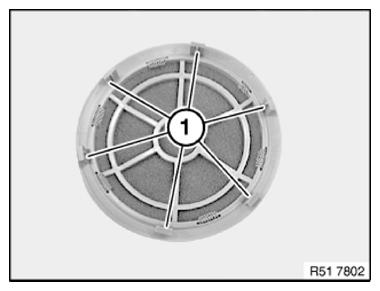

Catches (1) must not be damaged or missing.

Fig 2: Identifying Catches

Courtesy of BMW OF NORTH AMERICA, INC.
