51 21 225 Removing and installing or replacing inside door opener in left or right front door

Necessary preliminary tasks

Unhook Bowden cable for release lever:

Installation:

For fitting, press release lever (1) fully onto door trim panel.

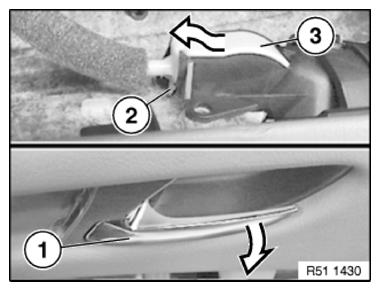

Fig 1: Identifying Bowden Cable, Release Lever, And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Release catches (2) and remove door opener (3).

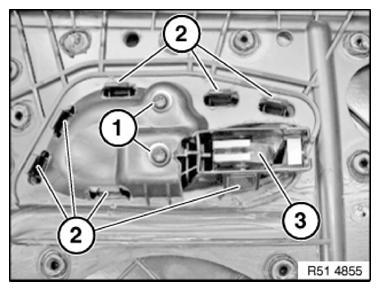

Fig 2: Identifying Door Opener, Catches, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on door opener (2) must not be damaged.

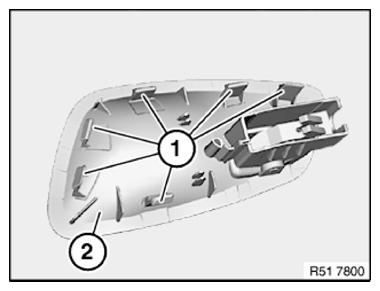

Fig 3: Identifying Door Opener Catches

Courtesy of BMW OF NORTH AMERICA, INC.
