51 47 220 Removing and installing/replacing luggage compartment trim panel on right side panel

Necessary preliminary tasks

• Remove PANEL FOR LUGGAGE COMPARTMENT AT REAR
• Remove FLAP IN LUGGAGE COMPARTMENT PANEL

Release clip (1) and remove cover (2).

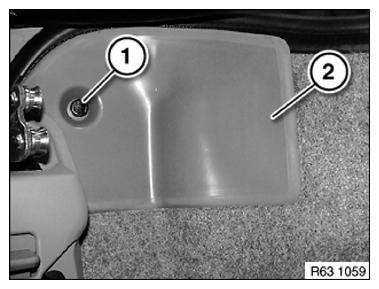

Fig 1: Identifying Cover And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1) and feed out panel (2).

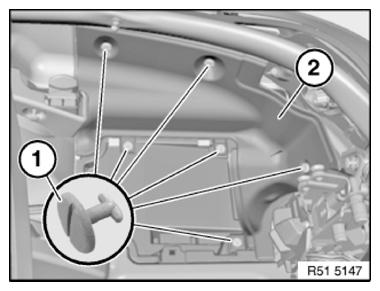

Fig 2: Identifying Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
