51 47 202 Removing and installing cover for luggage compartment

Open lid for lowerable hardtop.

If necessary, extend lowerable hardtop.

Raise cover (1) slightly.

Release screws (2) and remove cover (1).

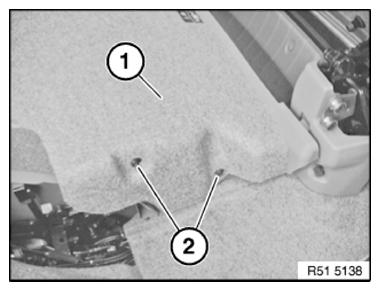

Fig 1: Identifying Luggage Compartment Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cover (1) must fit correctly into locators (2) on left and right.

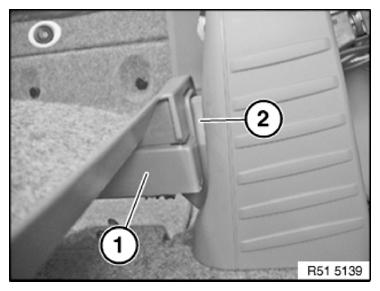

Fig 2: Identifying Luggage Compartment Cover Locators

Courtesy of BMW OF NORTH AMERICA, INC.
