51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim
Necessary preliminary tasks
- Remove LUGGAGE COMPARTMENT TRIM on side panel
- Remove LOCATING BRACKET FOR FOLDING ROOF
- If necessary, remove STORAGE TRAY

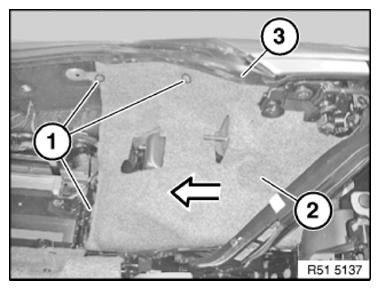

Release clips (1).
Lever out panel (2) on mucket (3).
NOTE:
Do not detach mucket (3) from body.
Feed out panel (2) in direction of arrow.
