51 47 140 Removing and installing/replacing panel for luggage compartment partition

Necessary preliminary tasks

• Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL

Version with ski bag:

• Remove ski bag

Open lid for lowerable hardtop.

If necessary, extend lowerable hardtop.

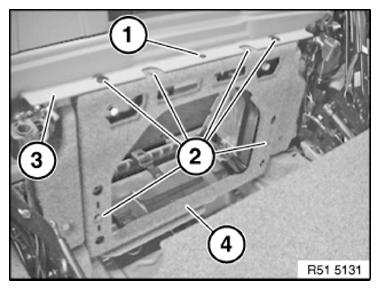

Release screw (1).

Release clips (2).

Raise trim (3) slightly and feed out panel (4).

Installation:

If necessary, replace faulty clips (2).
