99 00... Individual parts/painting

Follow GENERAL INSTRUCTIONS ON PAINTING .

Roof shell, front

Area specification applies to all paint stages.

Fig 1: Identifying Roof Shell (Front)

G06912429

Courtesy of BMW OF NORTH AMERICA, INC.

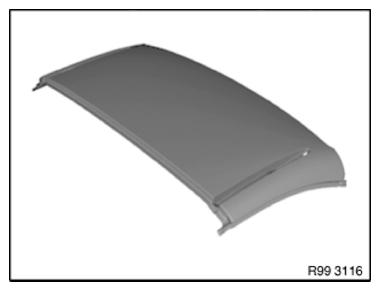

Roof shell, middle

Area specification applies to all paint stages.

Fig 2: Identifying Roof Shell (Middle)

G09864411

Courtesy of BMW OF NORTH AMERICA, INC.

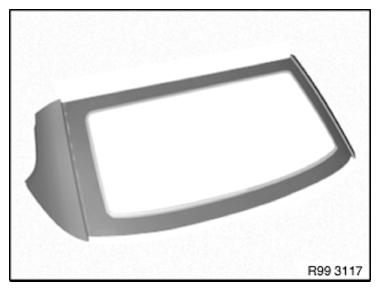

Roof shell, outer rear

Area specification applies to all paint stages.

Fig 3: Identifying Roof Shell (Outer Rear)

G09864412

Courtesy of BMW OF NORTH AMERICA, INC.

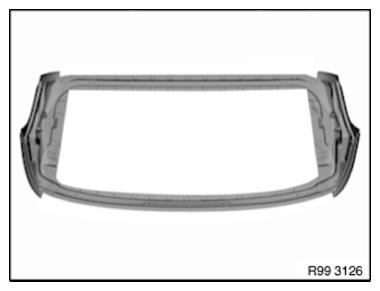

Roof shell, inner rear

Area specification applies to all paint stages.

Fig 4: Identifying Roof Shell (Inner Rear)

G09864413

Courtesy of BMW OF NORTH AMERICA, INC.

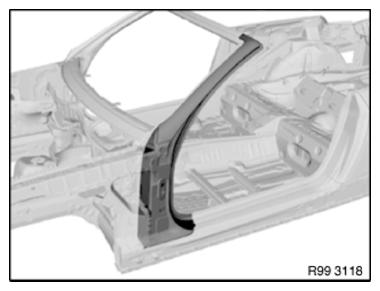

Roof frame, front

Area specification applies to paint stage 1.

Fig 5: Identifying Roof Frame - Front (Stage 1)

G09864414

Courtesy of BMW OF NORTH AMERICA, INC.

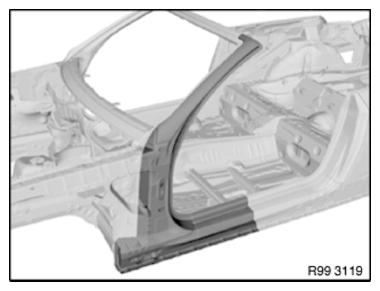

Roof frame, front

Area specification applies to paint stage 3.

Fig 6: Identifying Roof Frame - Front (Stage 3)

G09864415

Courtesy of BMW OF NORTH AMERICA, INC.

Rear tail panel

Area specification applies to all paint stages.

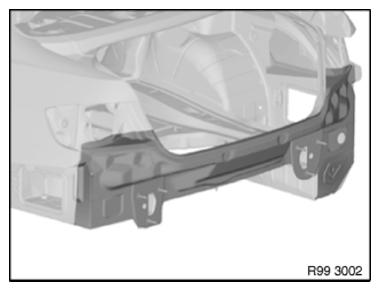

Fig 7: Identifying Rear Tail Panel

G09853062

Courtesy of BMW OF NORTH AMERICA, INC.

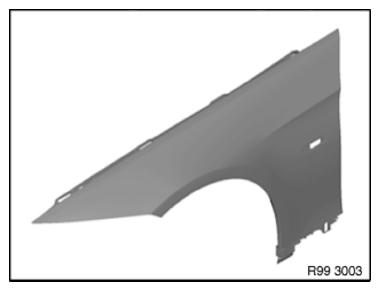

Side wall, front

Area specification applies to all paint stages.

Fig 8: Identifying Side Wall (Front)

G09853063

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel

Area specification applies to paint stage 1.

Fig 9: Identifying Rear Side Panel (Stage 1)

G09864418

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel

Area specification applies to paint stage 3.

Fig 10: Identifying Rear Side Panel (Stage 3)

G09864419

Courtesy of BMW OF NORTH AMERICA, INC.

Cover for entrance

Area specification applies to all paint stages.

Fig 11: Identifying Entrance Cover

G06912434

Courtesy of BMW OF NORTH AMERICA, INC.

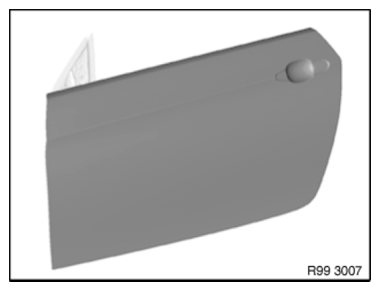

Front door

Area specification applies to all paint stages.

Fig 12: Identifying Front Door (All Stages)

G06912435

Courtesy of BMW OF NORTH AMERICA, INC.

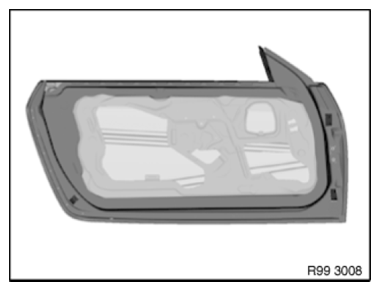

Front door

Additional area specification inner plate for paint stages 2 and 3.

Fig 13: Identifying Front Door (Stage 2 And 3)

G06912436

Courtesy of BMW OF NORTH AMERICA, INC.

Front lid

Area specification applies to all paint stages.

Additionally complete inner plate for paint stages 2 and 3.

Fig 14: Identifying Front Lid

G06897803

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid

Area specification applies to all paint stages.

Fig 15: Identifying Rear Lid (All Stages)

G09853070

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid

Additional area specification inner plate for paint stages 2 and 3.

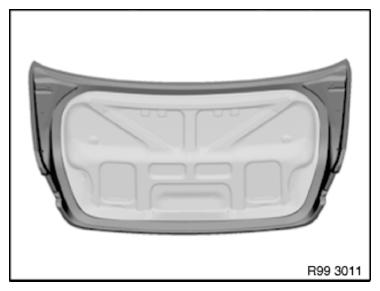

Fig 16: Identifying Rear Lid (Stage 2 And 3)

G09853071

Courtesy of BMW OF NORTH AMERICA, INC.
