54 62 010 Removing and installing or replacing trim cover on left or right rollbar

Necessary preliminary tasks

Undo left/right screws (1) and detach left/right trim panel (2) by lifting upwards.

Tightening torque 51 46 4AZ .

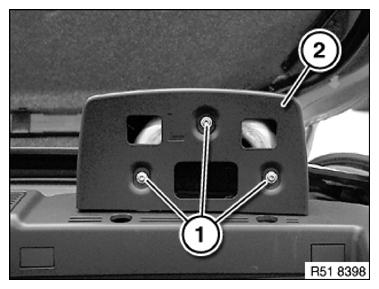

Fig 1: Identifying Left/Right Screws And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
