54 37... Checking distinguishing features, sealing system new/old
In isolated cases vehicles from the quarter 04/2007 may turn up with the altered sealing system from trial runs.
Mixed installation between old and new systems will result in leaks.
The new and old sealing systems are marked as follows in these instructions:
- = new (altered) sealing system
- = old sealing system
Seal for front roof shell
Old

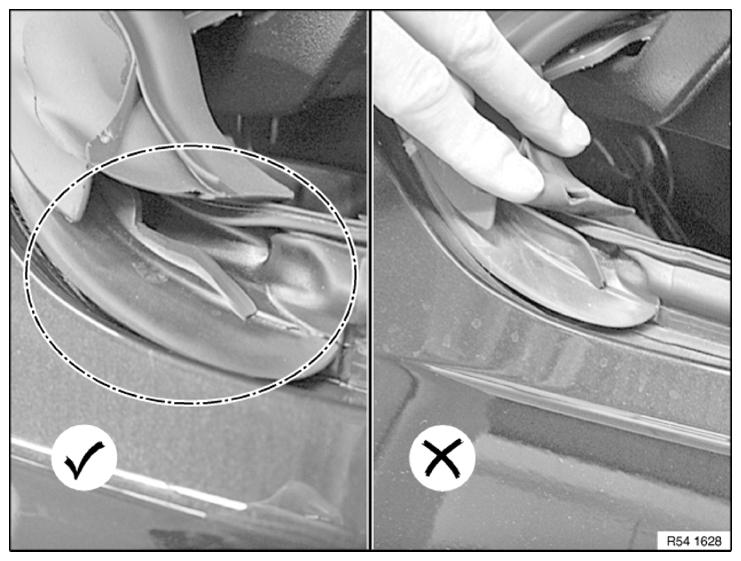

Two filler pieces are fitted in the front area of the seal. Filler pieces can be identified by touch.
New
Seal without filler pieces. Filler pieces cannot be identified by touching.
Seal for front roof shell
New

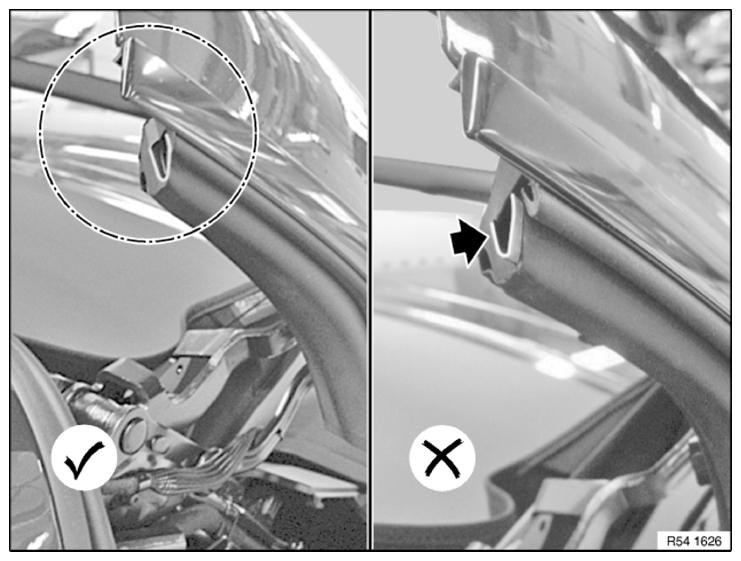

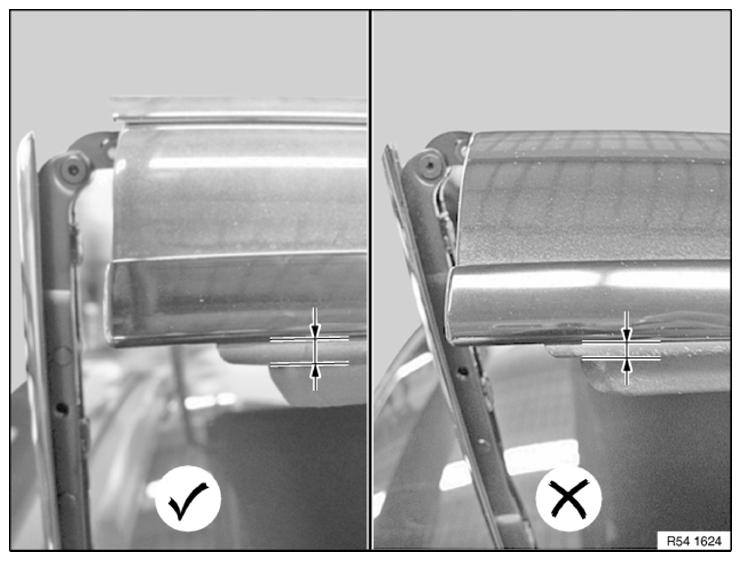

The side edge of the front seal is pulled down a further 1.5 mm. Window glass retracts into this seal by a further 1.5 mm.
Front center roof shell gasket
New

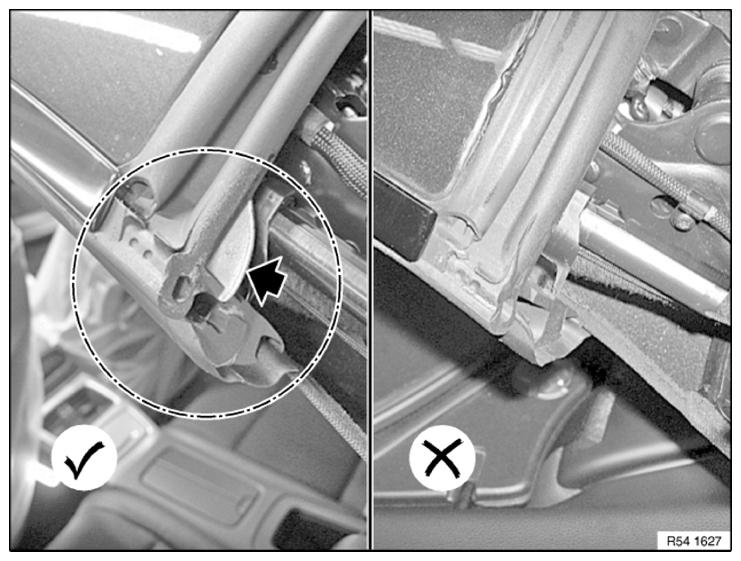

Modified rib structure on seal.
Rear center roof shell gasket
New

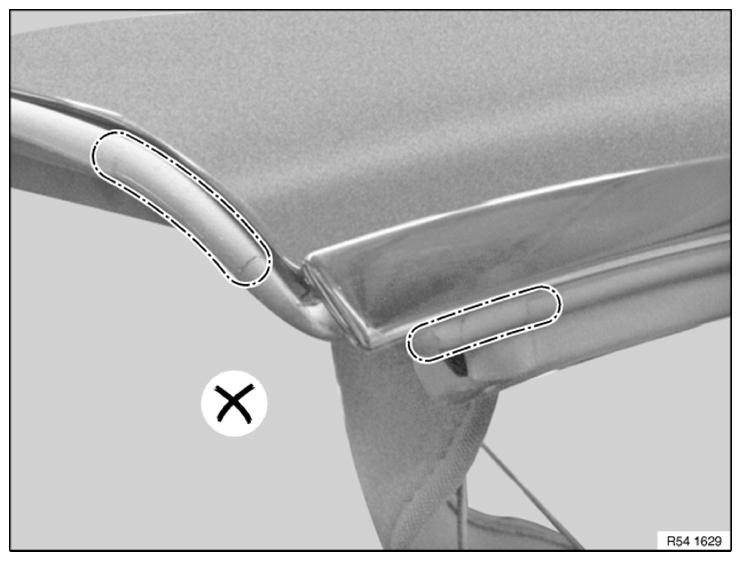

Additional rubber structure at rear end of seal.
Roof shell seal, rear
New
Omission of lip at front end of seal .
Soft top cover seal

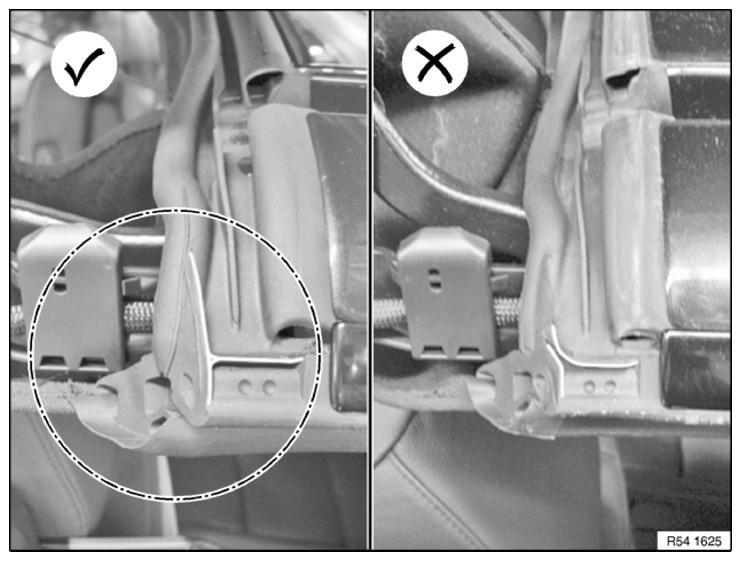

Recondition shaped corner at transition of soft top cover seal to luggage compartment seal.
Cut off middle rib approx. 3-4 cm to allow water to flow off better in this area.
