63 31 185 Replacing LED for side trim panel light

Necessary preliminary tasks

• Remove REAR SIDE TRIM PANEL .

Pull off LED (1) in direction of arrow from fibre-optic waveguide (2).

Installation:

LED (1) must snap noticeably into fibre-optic waveguide (2).

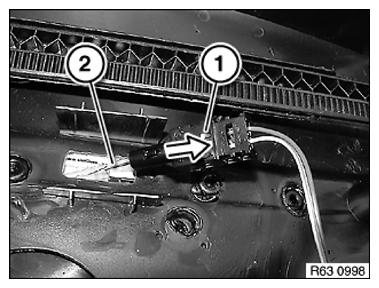

Fig 1: Pulling Off LED

Courtesy of BMW OF NORTH AMERICA, INC.
