63 31 180 Replacing LED for front door trim panel light

Necessary preliminary tasks

Unlock LED (1) at catch (2) and detach in direction of arrow from fibre-optic waveguide (3).

Installation:

LED (1) must snap noticeably into fibre-optic waveguide (2).

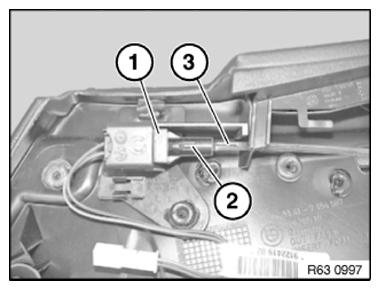

Fig 1: Identifying LED, Catch And Fibre-Optic Waveguide

Courtesy of BMW OF NORTH AMERICA, INC.
