51 24 131 Removing and installing/replacing left or right striker for rear lid lock
Necessary preliminary tasks
- Remove TRIM ON SUPPORT TUBE

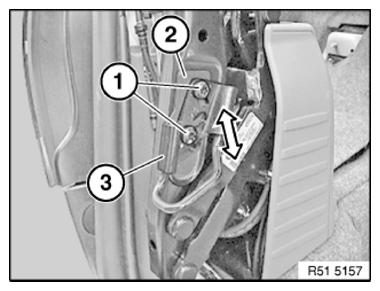

Release screws (1).
Remove shims (2) and striker (3).
Tightening torque 51 24 4AZ .
Installation:
Adjust STRIKER .
