51 43 018 Removing and installing/replacing speaker trim on left or right side trim panel

Necessary preliminary tasks

Carefully release speaker trim (1) at catches (2) and remove in outwards direction.

NOTE: Catches (2) are held in position by installed speaker.

Installation:

Make sure catches (2) are in correct position.

Speaker trim (1) can only be installed in one position.

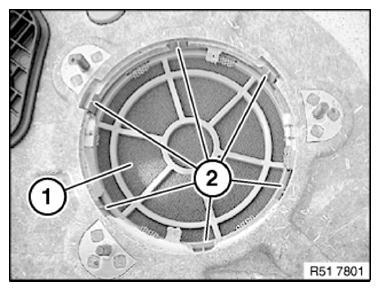

Fig 1: Identifying Speaker Trim Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) must not be damaged or missing.

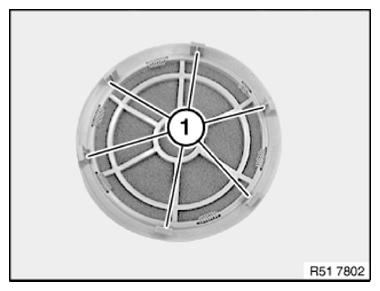

Fig 2: Identifying Catches

Courtesy of BMW OF NORTH AMERICA, INC.
