51 61 017 Removing and installing/replacing diagonal strut, front end, left
WARNING:
Scalding hazard!
Only perform work after engine has cooled down.
Only perform work after engine has cooled down.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without the diagonal strut is not permitted!
Driving without the diagonal strut is not permitted!
Necessary preliminary tasks
- Remove FRONT UNDERBODY PROTECTION
- If necessary, REMOVE RADIATOR SEAL
IMPORTANT:
Diagonal strut on right side must be installed in direction of travel ahead of diagonal strut on left side.

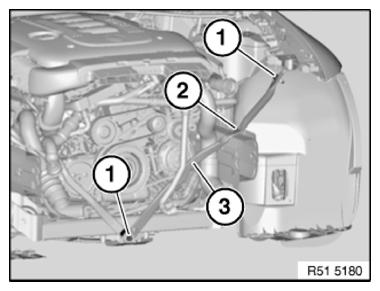

Release screws (1) and nuts (2).
Feed out diagonal strut (3) towards top.
Installation:
Replace screws.
Replace self-locking nut.
Tightening torque 51 71 11AZ .
