51 12 825 Removing and installing/replacing guide for rear center bumper

Necessary preliminary tasks

• Remove REAR BUMPER TRIM

Version with Comfort Access:

• Remove BUMPER AERIAL FOR COMFORT ACCESS

E93:

• Release BUMPER ANTENNA from bumper guide

If necessary, feed out cable (1) of Park Distance Control.

Release nuts (2) and remove guide (3).

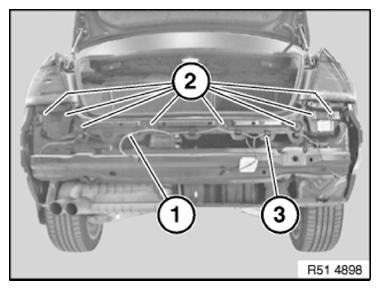

Fig 1: Identifying Cable, Nuts, And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
