51 12 050 Removing and installing/replacing support for rear bumper panel

IMPORTANT: During replacement, all the cavities of the support (1) and the crashbox (2) must be sealed with CAVITY SEALING .

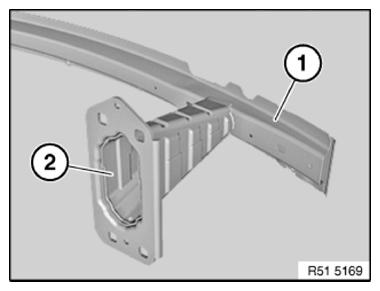

Fig 1: Identifying Support And Crashbox

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

If applicable, release screws (1) and feed out the suspension (2) from the rear silencer.

Unscrew nuts (3).

Remove support (4).

Tightening torque 51 12 1AZ .

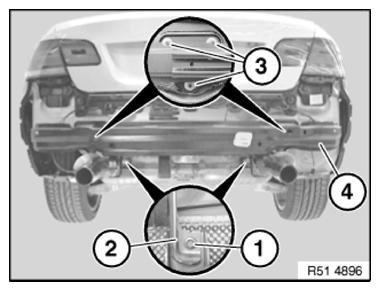

Fig 2: Identifying Support, Screws, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

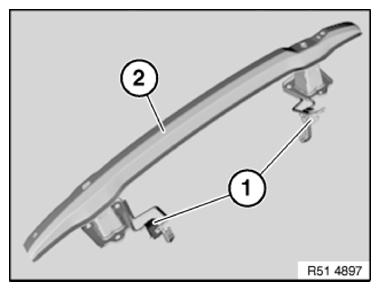

If necessary, release the rubber mount (1) from the support (2).

Fig 3: Locating Rubber Mounts

Courtesy of BMW OF NORTH AMERICA, INC.
