51 16 383 Installing and removing/replacing right glove box damper (with airbag)

Preliminary work needed

• Remove the GLOVE BOX WITH HOUSING

Unscrew the circlips (1).

Remove the damper (2).

Installation note:

Circlips (1) must engage correctly.

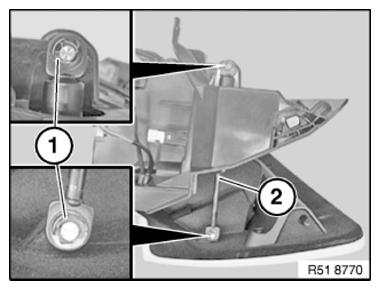

Fig 1: Identifying Glove Box Damper And Circlips

Courtesy of BMW OF NORTH AMERICA, INC.
